Connect SAP to Solace Platform. Real-time, code-less, bidirectional.
The ASAPIO Integration Add-on connects SAP ECC and SAP S/4HANA directly to Solace Platform event brokers – on-premise, hybrid and cloud. Together with Solace, ASAPIO makes SAP data available across the enterprise in real time, without middleware or custom development.
Real-time event mesh
Connect SAP business events to the Solace event mesh – moving data safely and reliably from any system to any system, wherever needed. No polling, no batch delays. Events land in Solace the moment they are created in SAP.
Code-less payload design
Model SAP data objects as Solace messages using the ASAPIO Payload Designer – no ABAP coding required for standard SAP objects. Supports SAP tables, CDS views, IDocs and custom BAdI extensions. Field mapping, filter conditions and BAdI extensibility included.
Bidirectional communication
Both outbound (SAP → Solace) and inbound (Solace → SAP) are supported. For inbound, ASAPIO delivers messages from Solace directly into SAP via IDoc, BAPI or custom-code handlers. Supports JSON and CloudEvents formats.
CloudEvents & Dynamic Topics
Native CloudEvents format support for interoperability with event-driven frameworks and Solace Event Portal. Dynamic topic hierarchies let downstream consumers subscribe precisely to the SAP data they need – by company code, document type, plant or any other dimension.
Proven & Production-Ready
ASAPIO Integration Add-on is included in two SAP standard products. Installs on SAP ECC 6.0 EhP 6 or higher, SAP S/4HANA On-Premise, SAP S/4HANA Private Cloud Edition and RISE with SAP PCE. No separate server required. Lightweight ABAP stack with minimal footprint – fast to deploy, low impact on SAP system resources.
Mass data & batch capable
Not just real-time: ASAPIO also supports large-volume batch transfers from SAP into Solace. Multi-threading distributes load across SAP work processes. Useful for initial data loads and historical data exports alongside ongoing event streams.
From SAP event to Solace message – in milliseconds
ASAPIO sits inside your SAP system and handles the full pipeline from event capture to Solace delivery. No middleware, no external agents, no polling.
1 – SAP event fires
A business event occurs in SAP – an order is created, a material changed, a payment posted. ASAPIO intercepts it instantly using native SAP mechanisms (BOR, BTE, Change Documents) without modifying any business logic.
2 – Payload assembled
ASAPIO's Payload Designer reads the relevant data from SAP tables and CDS views, applies field mapping and filters, and formats the message as JSON or CloudEvents 1.0 – no ABAP coding required for standard SAP objects. Custom structures are also supported.
3 – Published to Solace
The message is delivered to your Solace Platform broker over AMQP 1.0 or REST. Dynamic topic hierarchies route each event precisely to the right consumers across the enterprise event mesh.
Solace Queue Management from SAP
Gain full visibility into your Solace message queues directly from within the SAP GUI. ASAPIO provides a unified monitoring interface where SAP administrators can check queue levels, message delivery status, and handle error recovery without needing access to Solace PubSub+ Manager.
- Real-time queue level monitoring in SAP Cockpit
- Integrated Dead-Letter-Queue handling
- Visual mapping of Solace topics and queues inside SAP
Native SAP event sources – no changes to SAP business logic
ASAPIO uses proven SAP platform mechanisms as event triggers – the same mechanisms SAP itself uses internally. This means no modifications to standard SAP code and no risk of breaking existing processes.
RAP Events
Modern event triggers based on SAP's RESTful ABAP Programming Model – covering SAP S/4HANA business objects and custom RAP entities with cloud-ready event semantics.
Business Object Repository (BOR)
SAP's standard business object events – triggered by creates, changes and status transitions across +1,000 standard SAP objects across MM, SD, FI, HR, PM and other modules.
IDocs & further mechanisms
IDoc inbound/outbound triggering for EDI and legacy message-based interfaces, plus Business Transaction Events (BTE), Change Documents (CDHDR/CDPOS) and custom BAdI-based triggers.
SAP and Solace – the event mesh story
Together, Solace and ASAPIO enable real-time enterprise event mesh for SAP. ASAPIO handles the SAP side natively – capturing events from standard SAP mechanisms (RAP, BOR, BTE, Change Documents, IDocs) and delivering them reliably to Solace. ASAPIO also handles filtering of events before delivery. Solace handles the routing and multi-protocol fanout across the entire enterprise event mesh.
The result is a transparent, governance-rich data layer where SAP events flow alongside events from every other system – applications, databases, IoT devices – all coordinated through a single Solace event broker. No polling, no point-to-point integrations, no data silos.
Get SAP events into Solace in hours
From installation to monitoring real-time flows – quick to deploy, minimal configuration. Start with event discovery and expand from there.
Get startedDeploy the ASAPIO Integration Add-on into SAP ECC or SAP S/4HANA using standard STMS transports. Works on SAP systems from ECC 6.0 EhP 6 to SAP S/4HANA Cloud Private Edition.
Provide the connection details for your Solace Platform broker (on-premise, Solace Cloud, or hybrid). Specify protocol (AMQP 1.0 or REST) and validate the connection.
Use the Payload Designer to model SAP business objects and define topic names. Build dynamic topic hierarchies for precise downstream subscriptions – route by plant, company code, order type, or any dimension in your data.
Link ASAPIO interfaces to native SAP event triggers: RAP events, BOR events, BTEs, Change Documents or IDocs. Activate interfaces and start publishing events to Solace in real-time.
Watch event flow and message counts in the ASAPIO Event Studio. Register messages in Solace Event Portal with AsyncAPI or CloudEvents metadata for enterprise discoverability and governance.

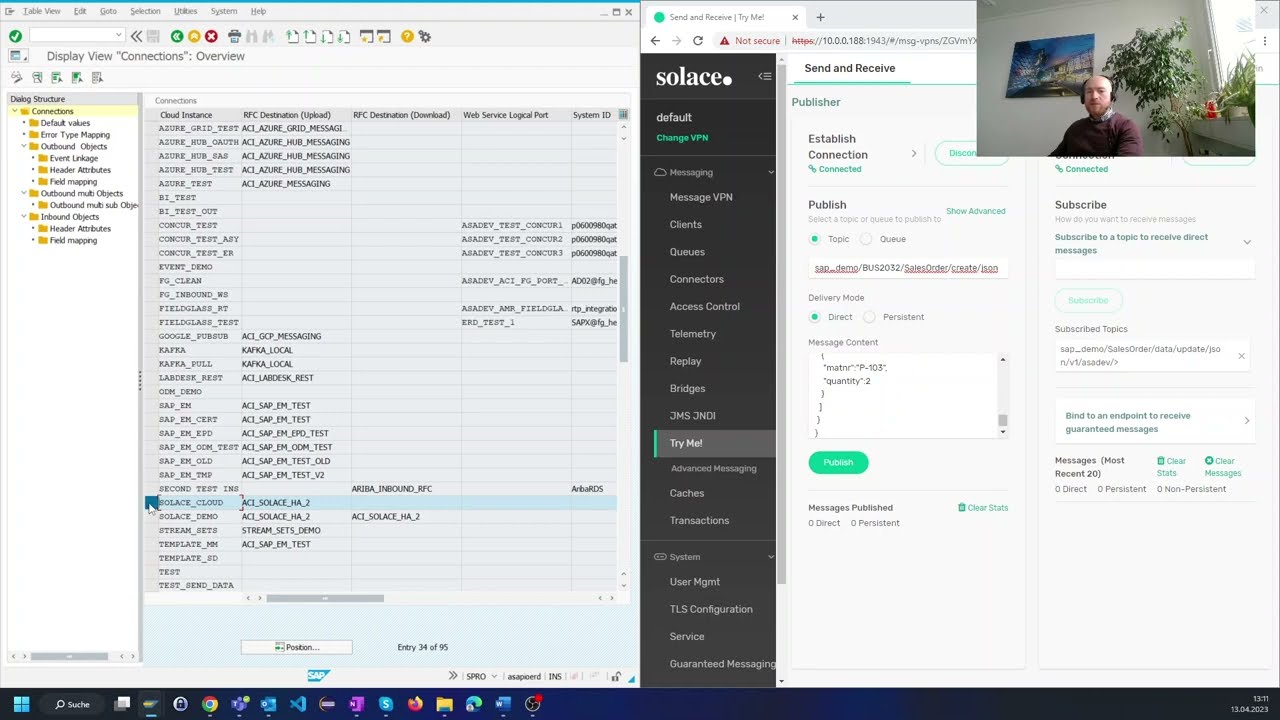

See the connector in action
Watch how the ASAPIO Integration Add-on connects SAP to Solace Platform – from configuration to live event flow.
