Amazon Web Services Connector

The ASAPIO Integration Add-on connects SAP S/4HANA and SAP ECC directly to AWS messaging and storage services — without middleware. Business events are published in real time to Amazon EventBridge, SNS, Kinesis Data Streams, or S3 using AWS Signature Version 4 (SigV4) signed REST calls. Unlike database-layer integrations, ASAPIO uses native SAP application-layer integration for full control over data and workload.

Overview

Prerequisites

Supported AWS Services

Important: Do not use the root user. Create a dedicated IAM user without AWS Management Console access, scoped only to the required service actions (principle of least privilege). Store the secret access key in the SAP Secure Store — never in plaintext configuration.

SAP Connection Setup (in SAP Gui)

The connection setup in SAP GUI is a required first step for all configuration paths. This creates the RFC destination, imports the SSL certificate, activates the BC-Set, and registers the connection instance that Event Studio and SAP GUI-based event configuration both rely on.

Step 1 — Create RFC Destination (SM59)

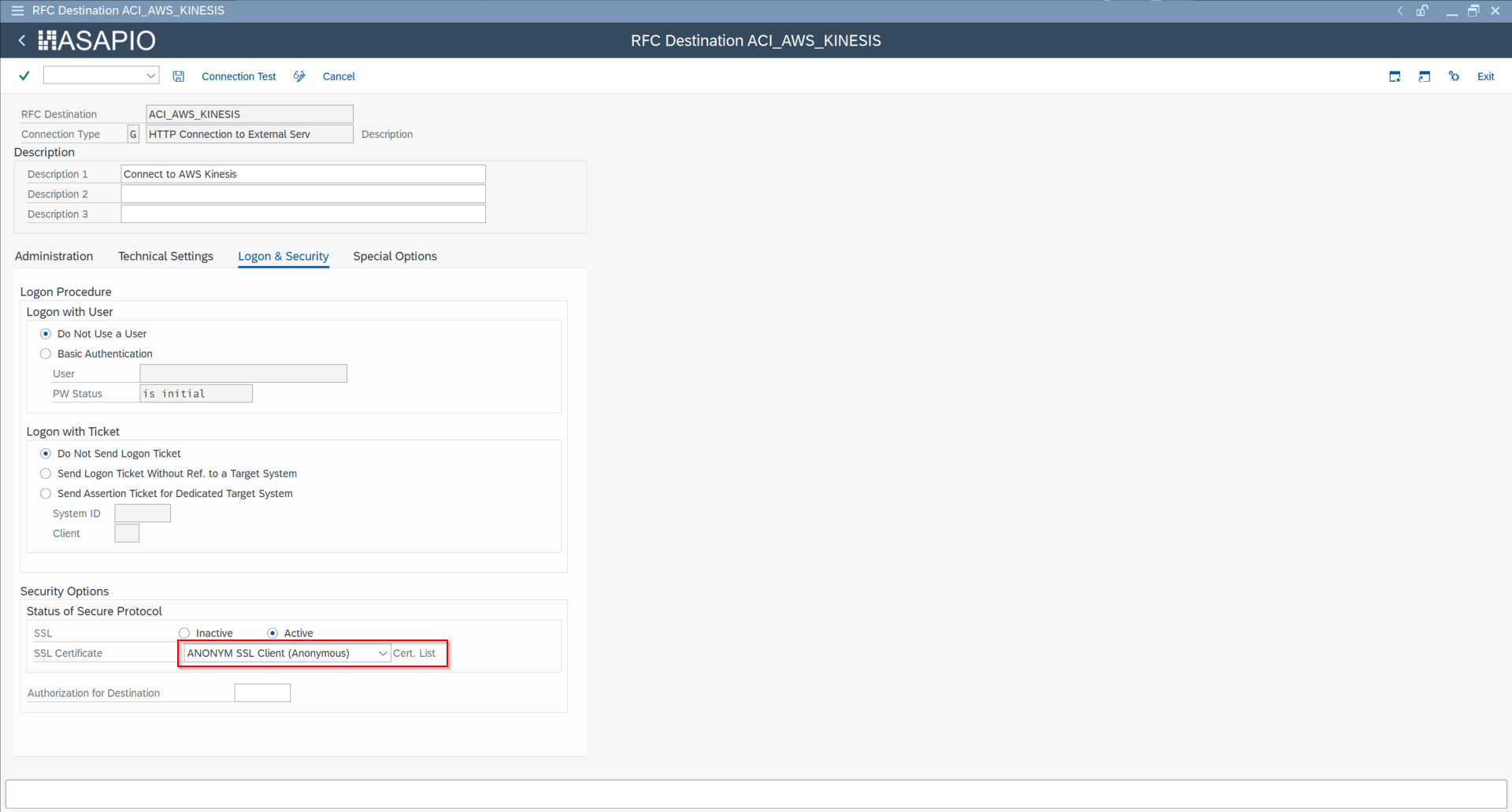

Create an HTTP connection of type G pointing to the AWS regional endpoint (e.g., events.eu-central-1.amazonaws.com). On the Logon & Security tab, enable SSL and select the certificate list.

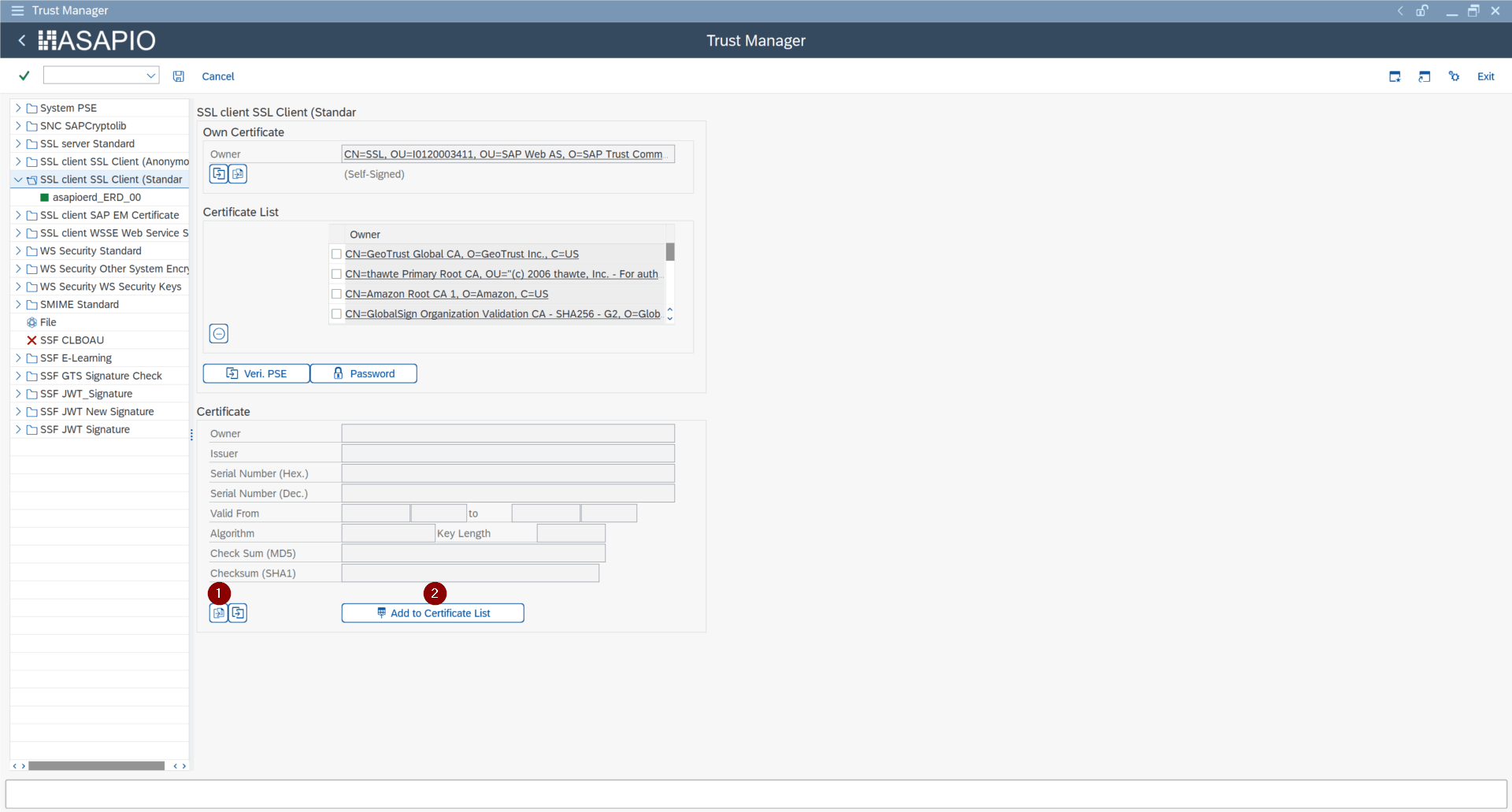

Step 2 — Import SSL Certificate (STRUST)

In transaction STRUST, select the certificate list used in the RFC destination, click Import certificate, then Add to Certificate List.

Step 3 — Import BC-Set (SCPR20)

Import the ASAPIO AWS framework BC-Set. This activates the cloud adapter configuration, codepage settings, and IDoc segment definitions:

• BC-Set: /ASADEV/ACI_BCSET_FRAMEWORK_AWS

Step 4 — Configure Cloud Adapter

In SPRO → ASAPIO Cloud Integrator → Maintain Cloud Adapter, set:

• Cloud Type: AWS
• ACI Handler Class: /ASADEV/CL_ACI_AWS_HANDLER

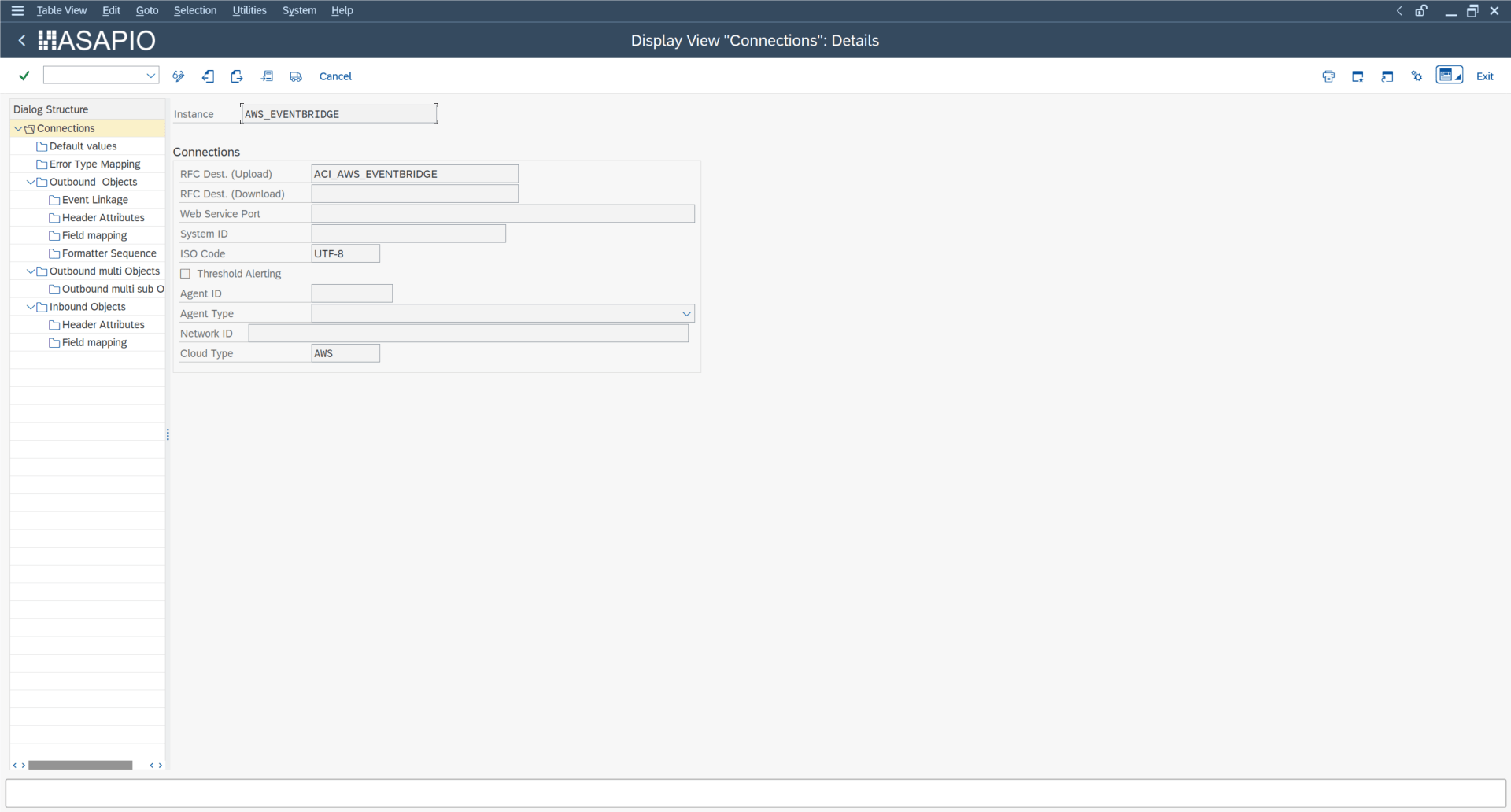

Step 5 — Create Connection Instance

In transaction /ASADEV/ACI_SETTINGS, create a connection instance pointing to the AWS RFC destination:

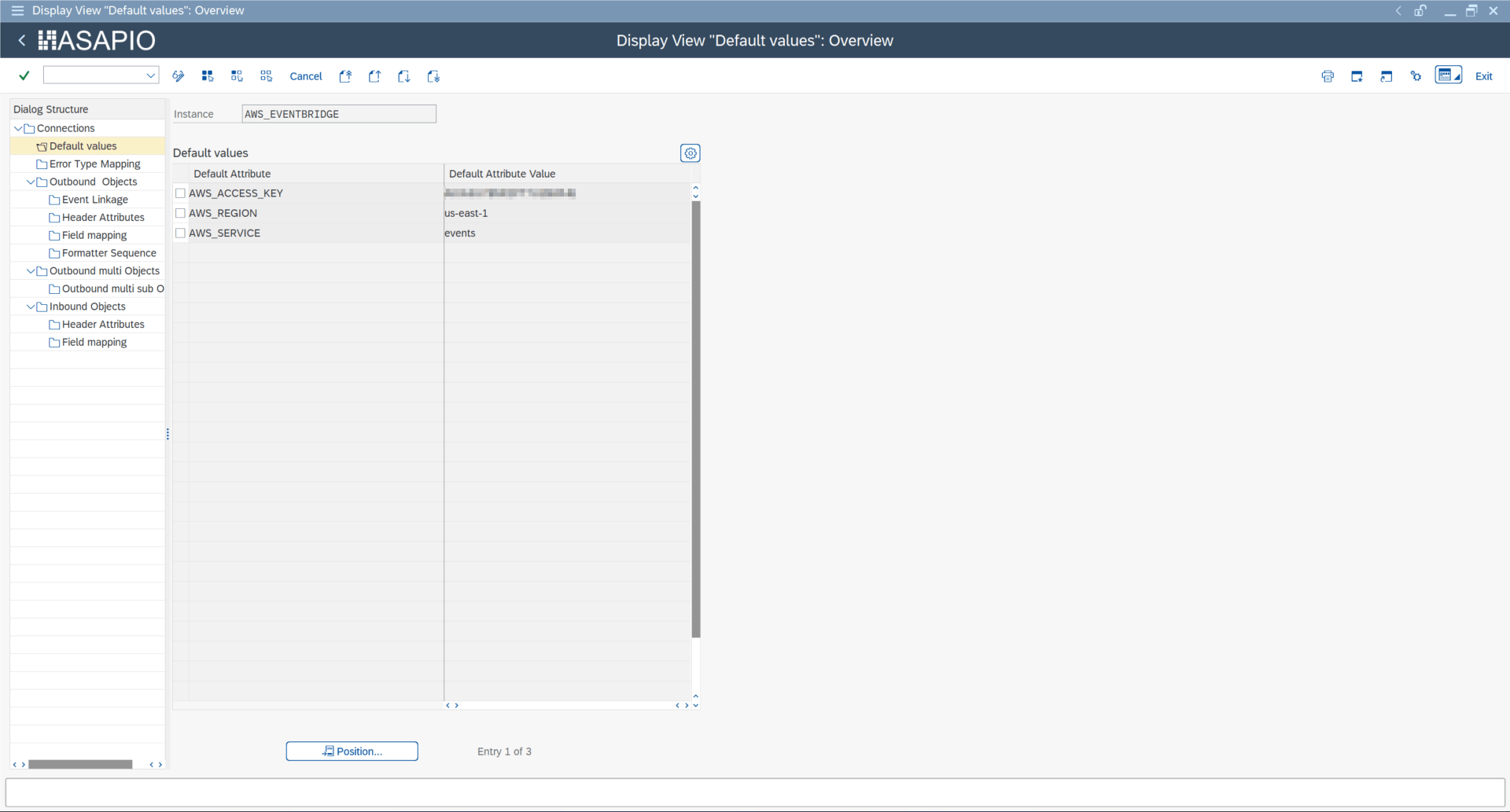

Step 6 — Configure Authentication Default Values

Set the following default values on the connection instance. These apply to all AWS service calls made through it:

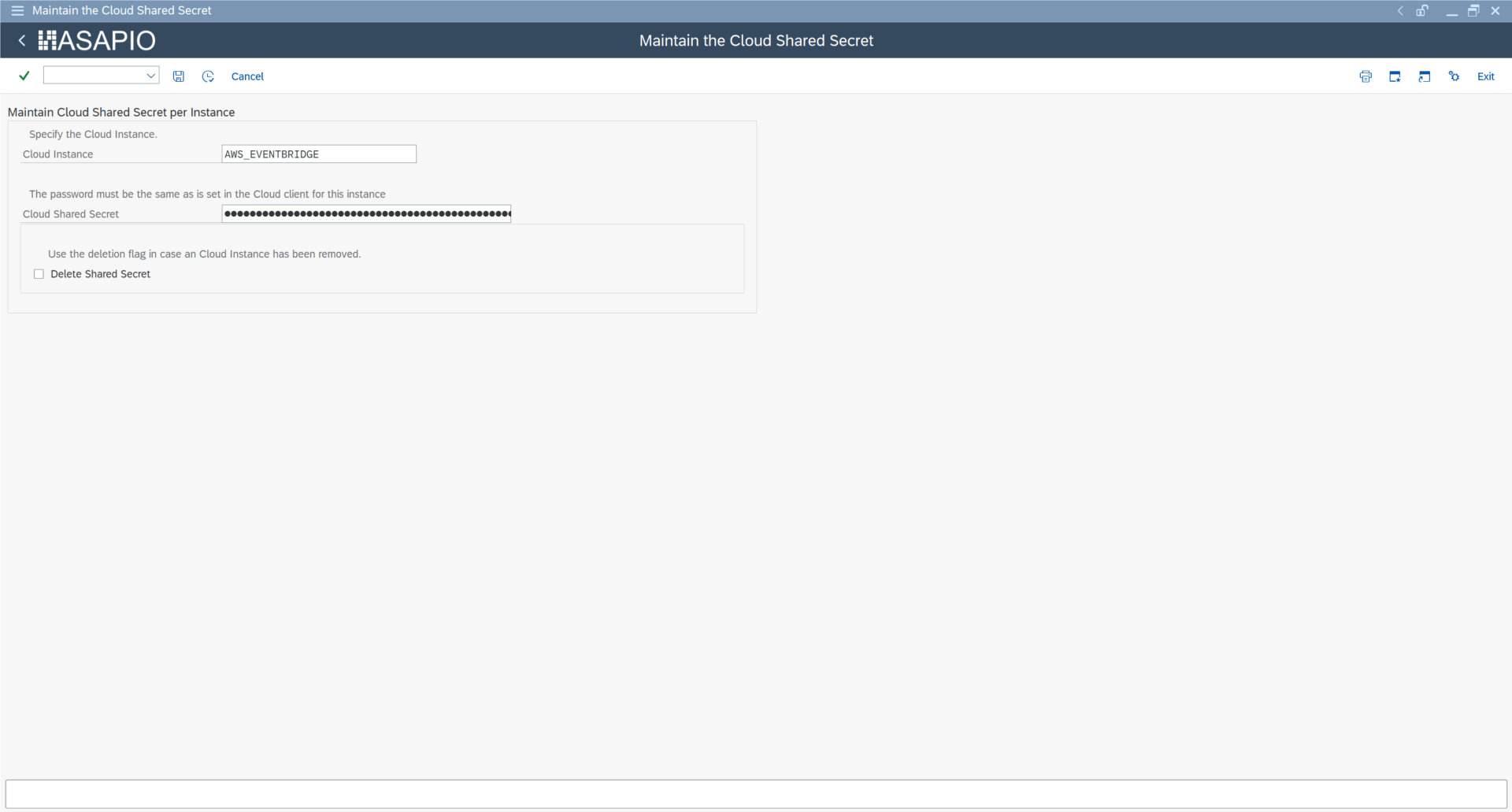

Store the IAM secret access key in the SAP Secure Store (transaction /ASADEV/SCI_TPW). Select the connection instance and enter the secret in the Cloud Shared Secret field:

Create an outbound interface (Event Studio)

Prerequisite: The connection instance must already be set up in SAP GUI (see SAP Connection Setup above) before Event Studio can be used to configure events.

Event Studio is the recommended web-based interface for creating and managing events. To configure an AWS event:

1. Open Event Studio and select the backend SAP system.
2. Go to the Data Catalog to find the data object (standard or custom) to stream.
3. In the Available Standard Events table, click Deploy next to the object, or use Create to define a new event.
4. Select the AWS connection from the Connection dropdown — the Header Fields table auto-populates with the connection's default attributes.
5. Complete the mandatory header attributes for the target AWS service (see the per-service sections below).
6. Save and activate the event.

After creating the interface in Event Studio, configure service-specific settings: EventBridge, SNS, Kinesis, or S3. For advanced configurations, see Payload Offloading and SNS Custom Attributes.

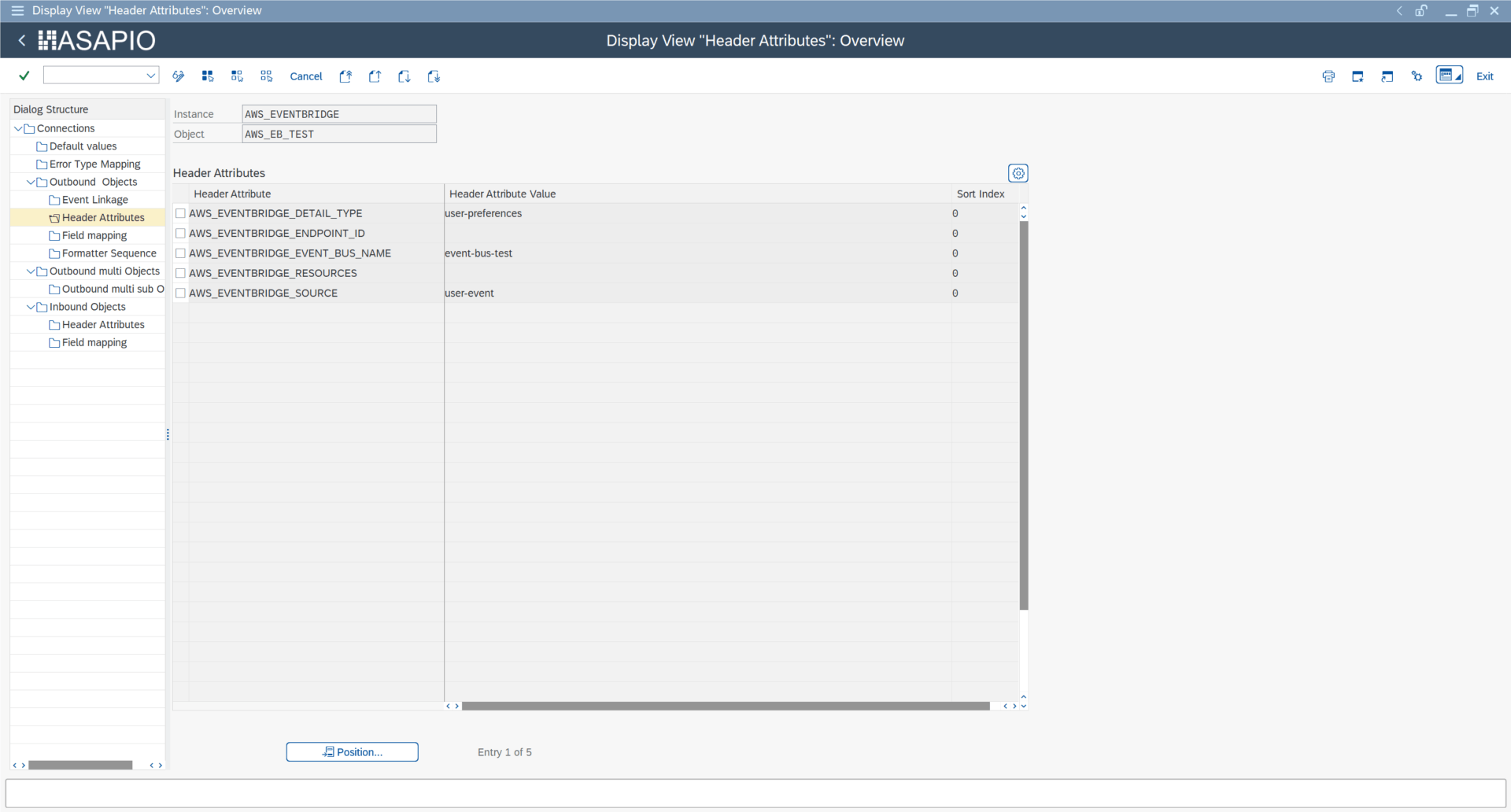

Amazon EventBridge

Configure the following header attributes on the outbound object for EventBridge targets:

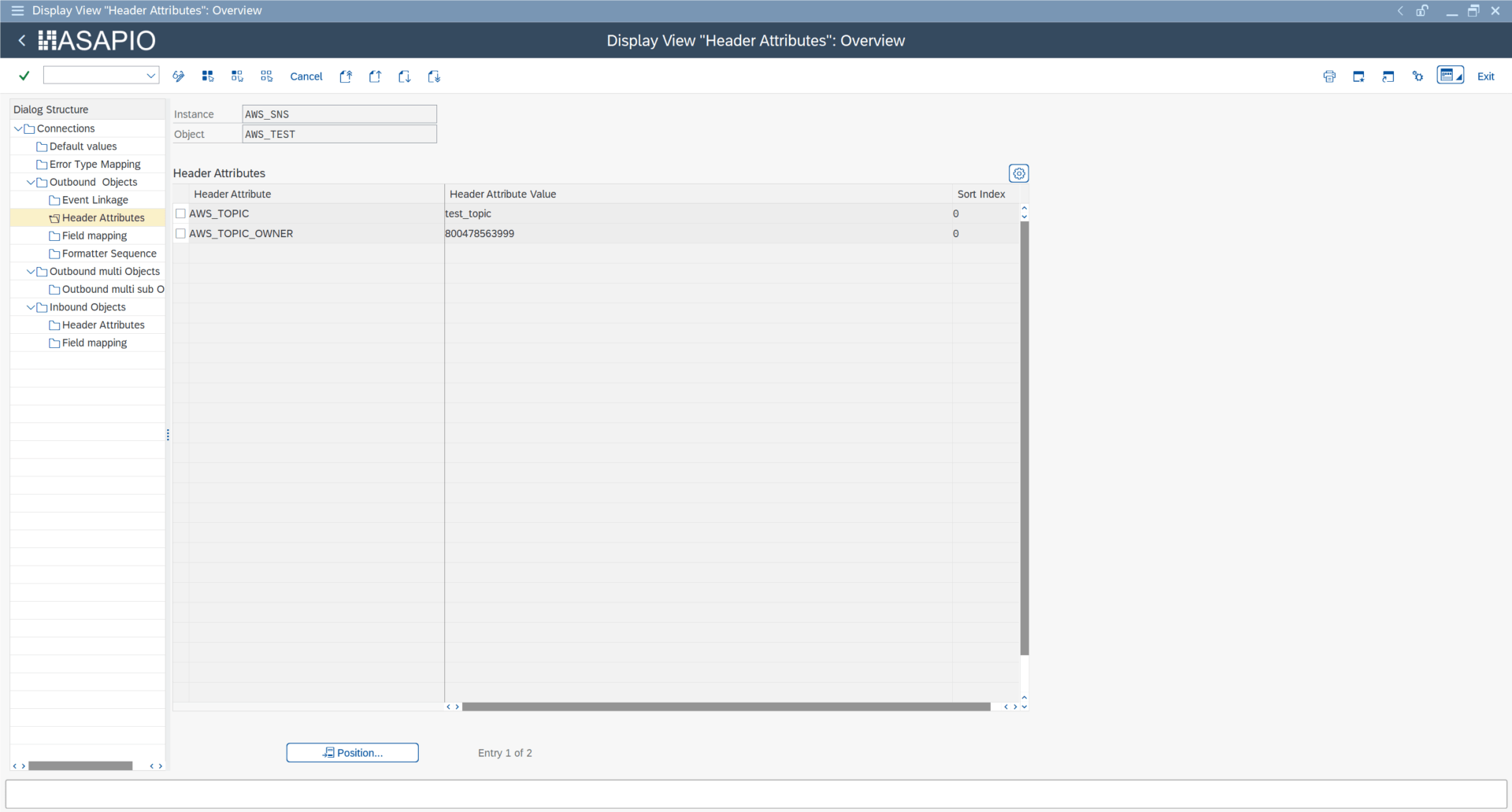

Amazon SNS

Configure the following header attributes for SNS targets:

Amazon Kinesis

Only Kinesis Data Streams are supported (not Kinesis Firehose). Configure the following header attribute:

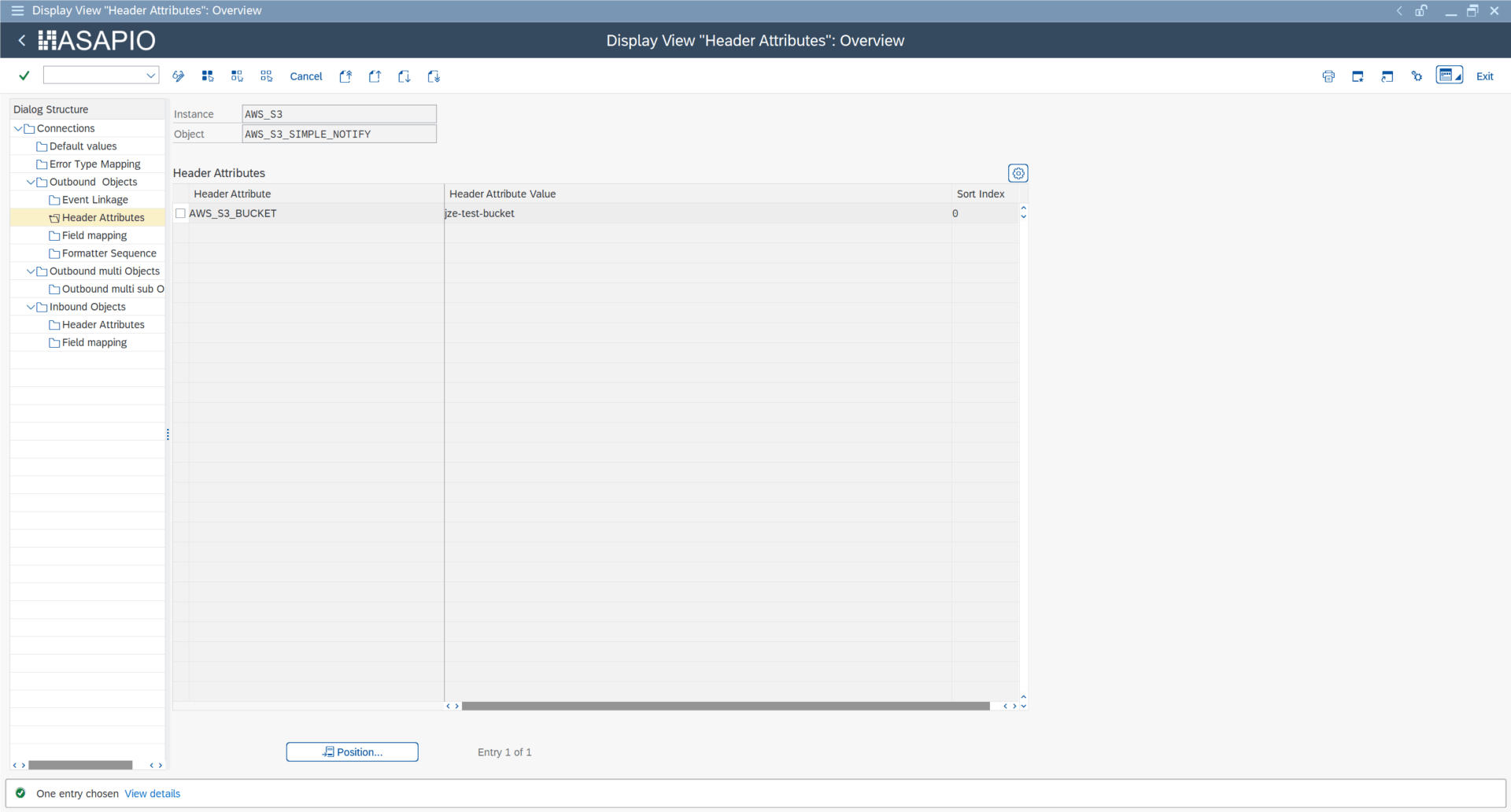

Amazon S3

Configure the following header attribute for S3 targets:

Create an outbound interface (SAP Gui)

All three outbound methods are available for AWS targets:

Step 1 — Create Message Type (WE81 / BD50)

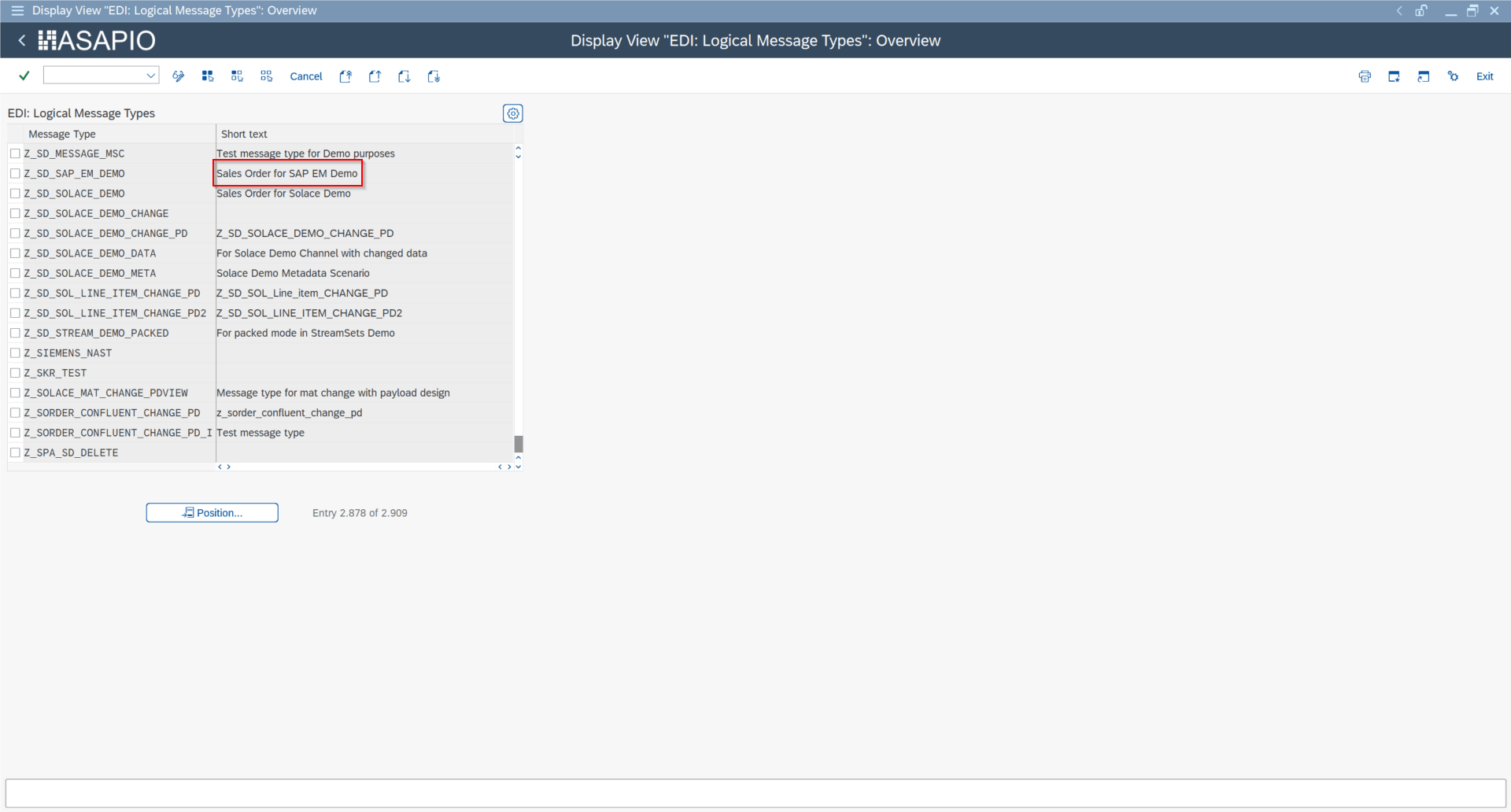

Create a unique message type in transaction WE81, then activate it in BD50 by ticking the Active checkbox.

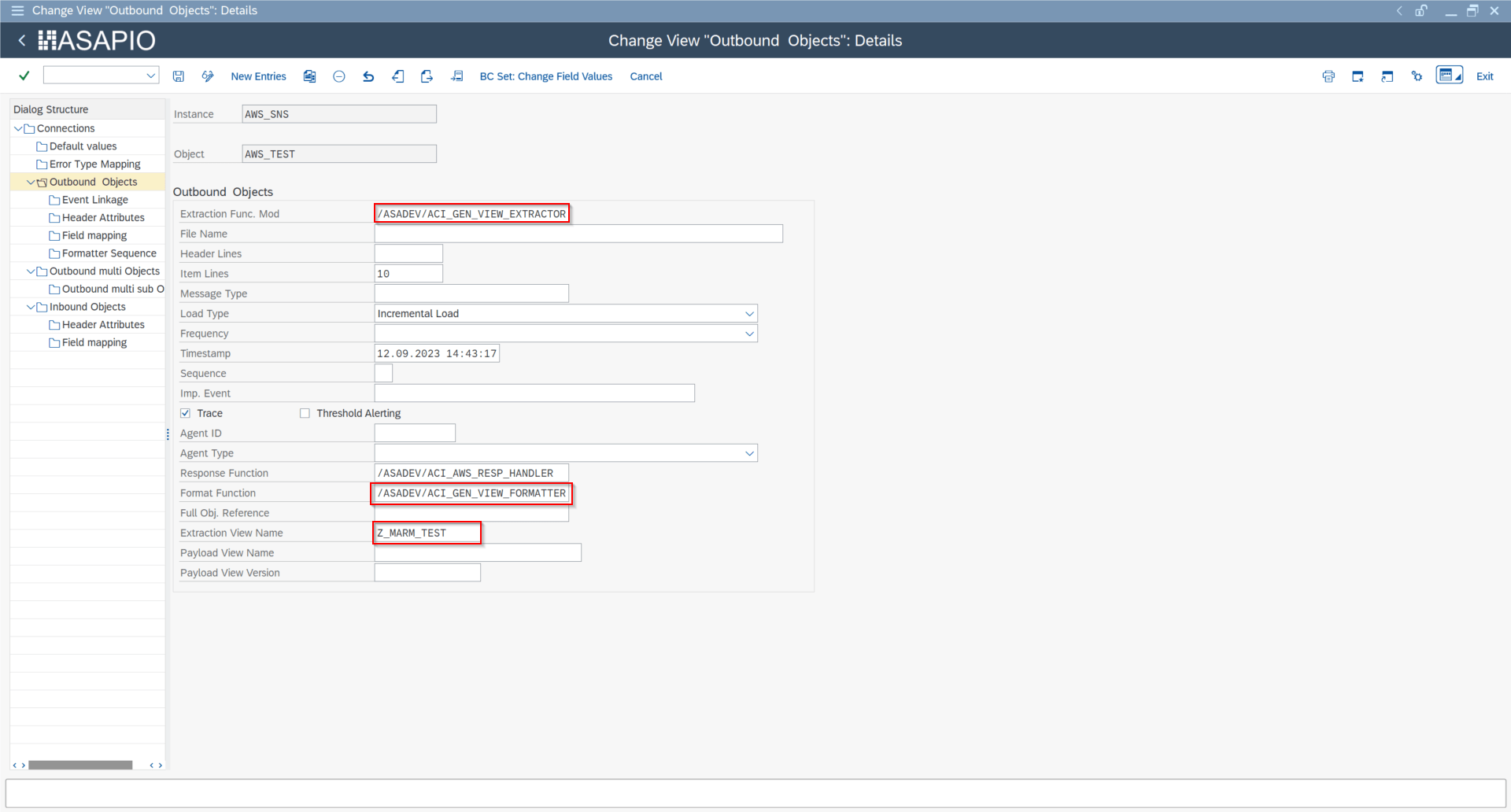

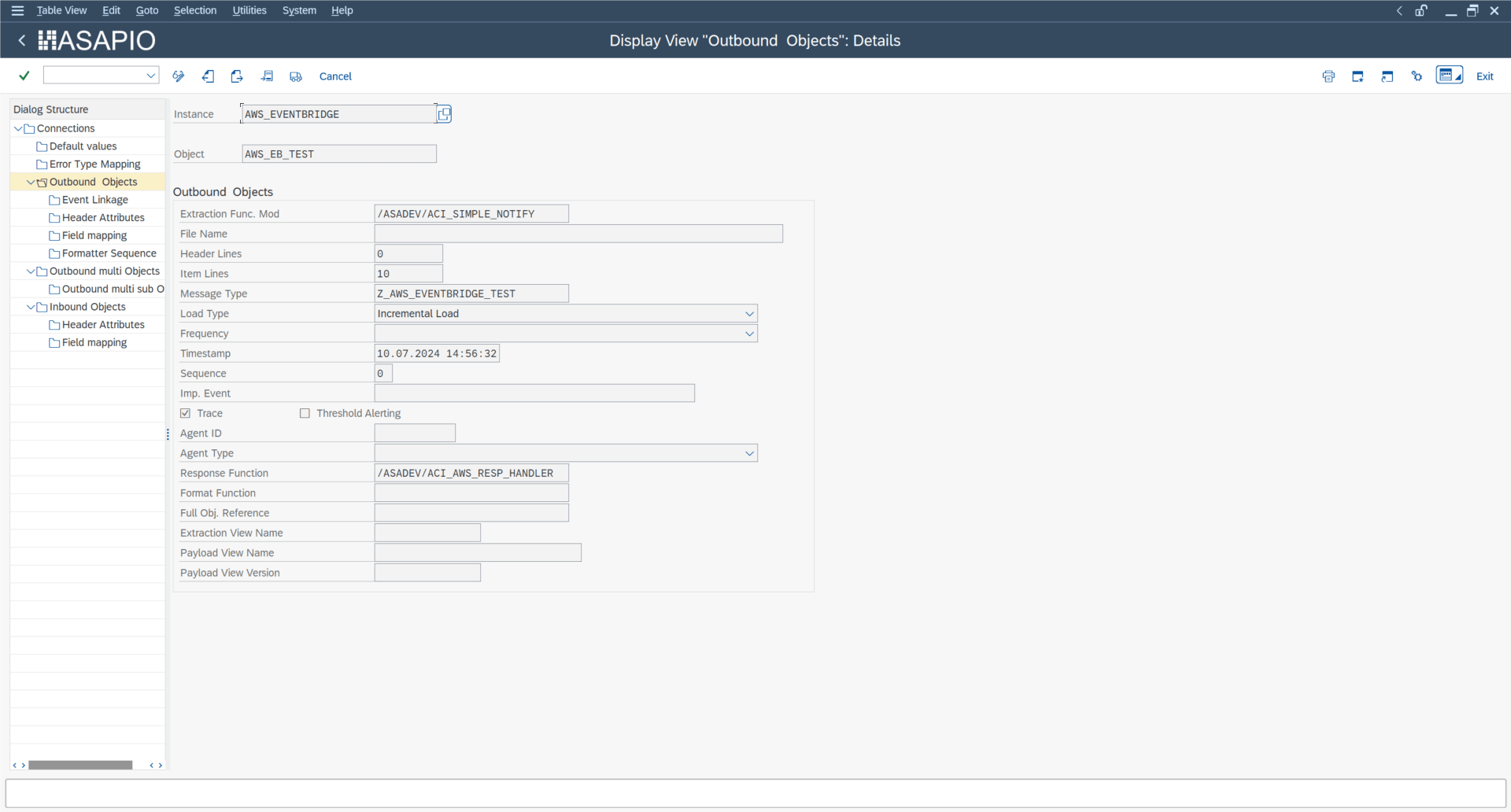

Step 2 — Create Outbound Object

In transaction /ASADEV/68000202, select the connection instance and add an entry under Outbound Objects. Set the Extraction FM, Message Type, Load Type, and Response Function as shown above.

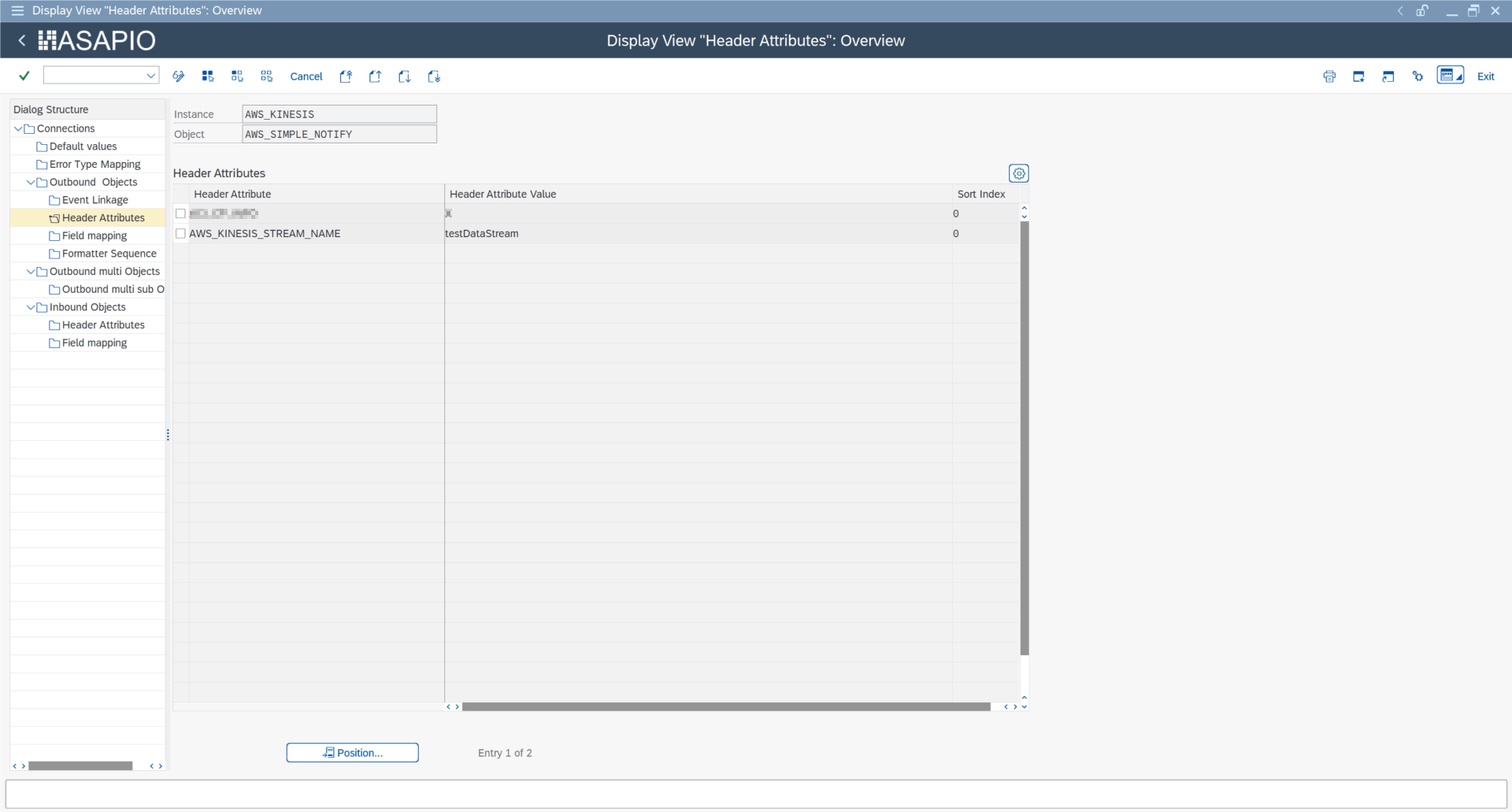

Step 3 — Configure Header Attributes

In the Header Attributes section of the outbound object, add the service-specific routing attributes listed in the per-service sections above.

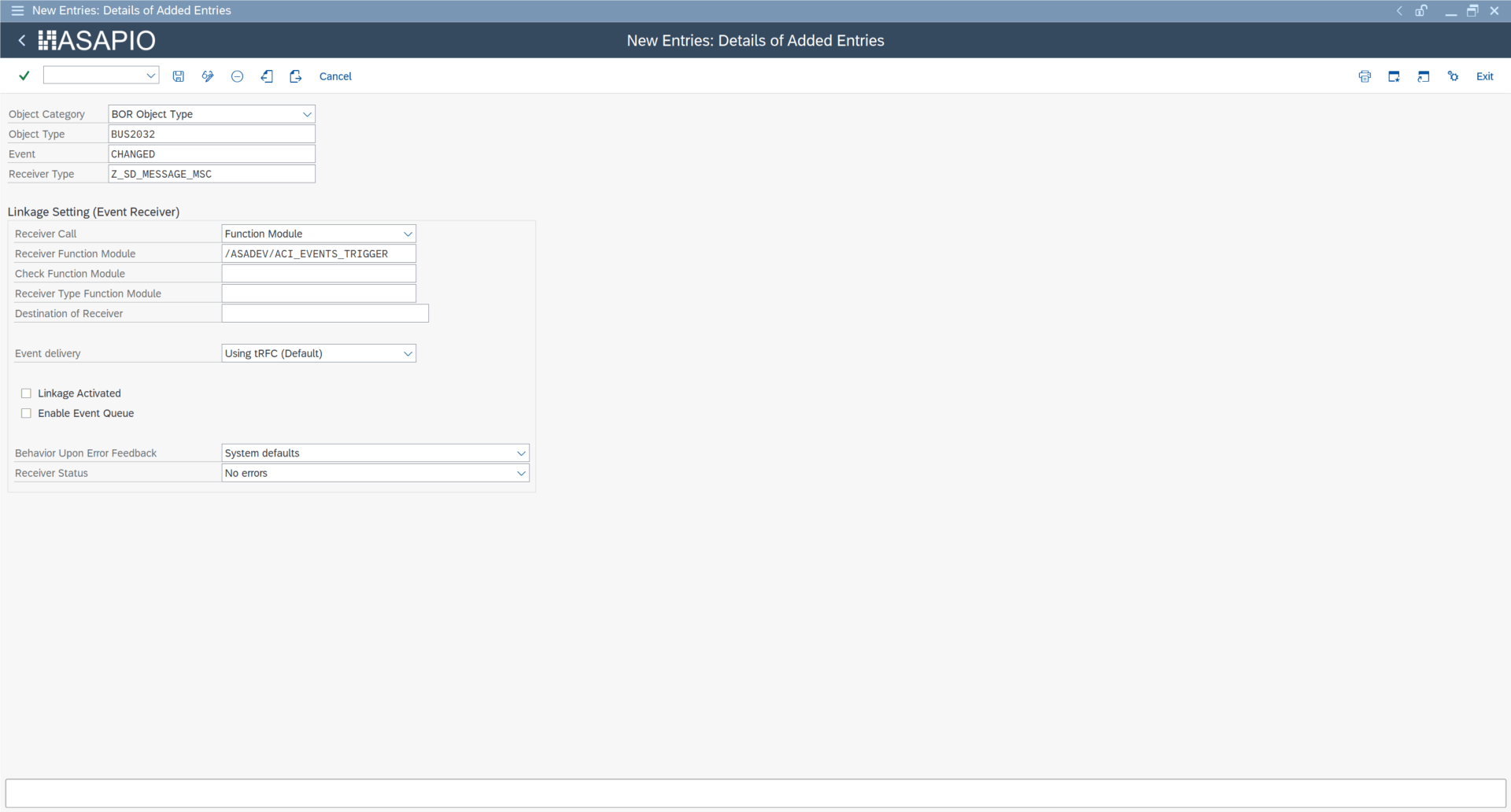

Step 4 — Event Linkage (SWE2)

Register the event trigger in transaction SWE2:

• Receiver Function Module: /ASADEV/ACI_EVENTS_TRIGGER
• Tick Type linkage Activated

Packed Load — Header Attributes

For Packed Load (large data splitting), configure these additional header attributes:

Execute the initial load in transaction /ASADEV/ACI: select the connection, set Upload Type to P, select the replication object, and specify a server group. Consult your basis team before running on large data volumes.

SNS Payload Offloading

Amazon SNS has a 256 KB message size limit. The ASAPIO AWS connector supports transparent payload offloading: the payload is written to S3, and the SNS notification contains only an S3 reference URL. The consuming application retrieves the full payload from S3. Offloading supports payloads up to 2 GB.

Configure the following header attributes to enable offloading:

SNS Custom Message Attributes

Available from release 9.32507, SNS Custom Message Attributes let you attach structured key-value metadata to each SNS message. Subscribers can filter messages using SNS subscription filter policies without parsing the message body.

Note for SQS subscriptions: A maximum of 10 message attributes can be sent when Raw Message Delivery is enabled. Messages with more than 10 attributes directed to Raw Message Delivery-enabled SQS subscriptions will be discarded as client-side errors.

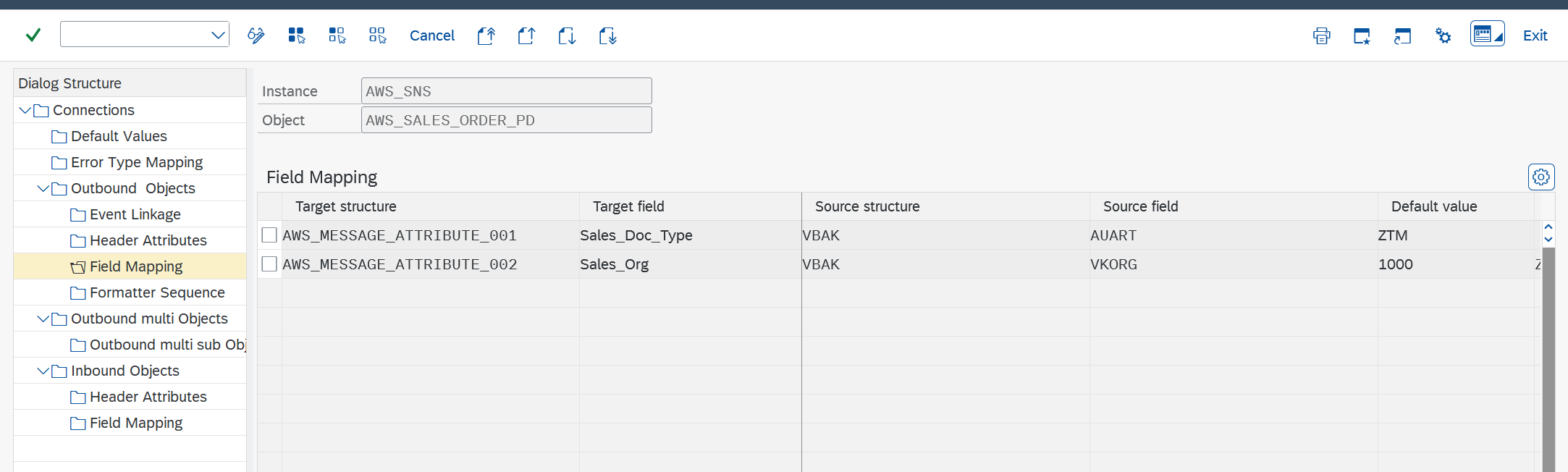

Configuration (Field Mapping Section)

In the Field Mapping section of the outbound object, add entries with:

• Target structure: AWS_MESSAGE_ATTRIBUTE_<idx> (3-digit index, e.g., AWS_MESSAGE_ATTRIBUTE_001)
• Target field: the attribute name to appear in the SNS message
• Source structure / field: the SAP field providing the value
• Default value: optional static fallback

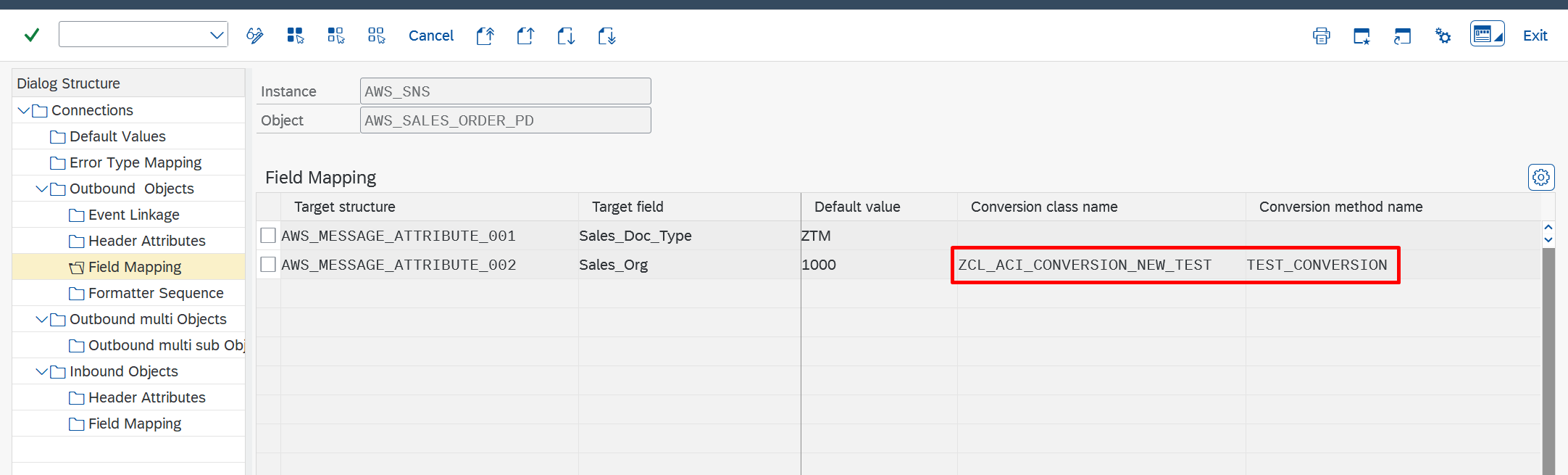

A conversion class/method can be specified to transform the raw field value (e.g., translate SAP-specific codes to common terms). The unconverted value is what gets transmitted.

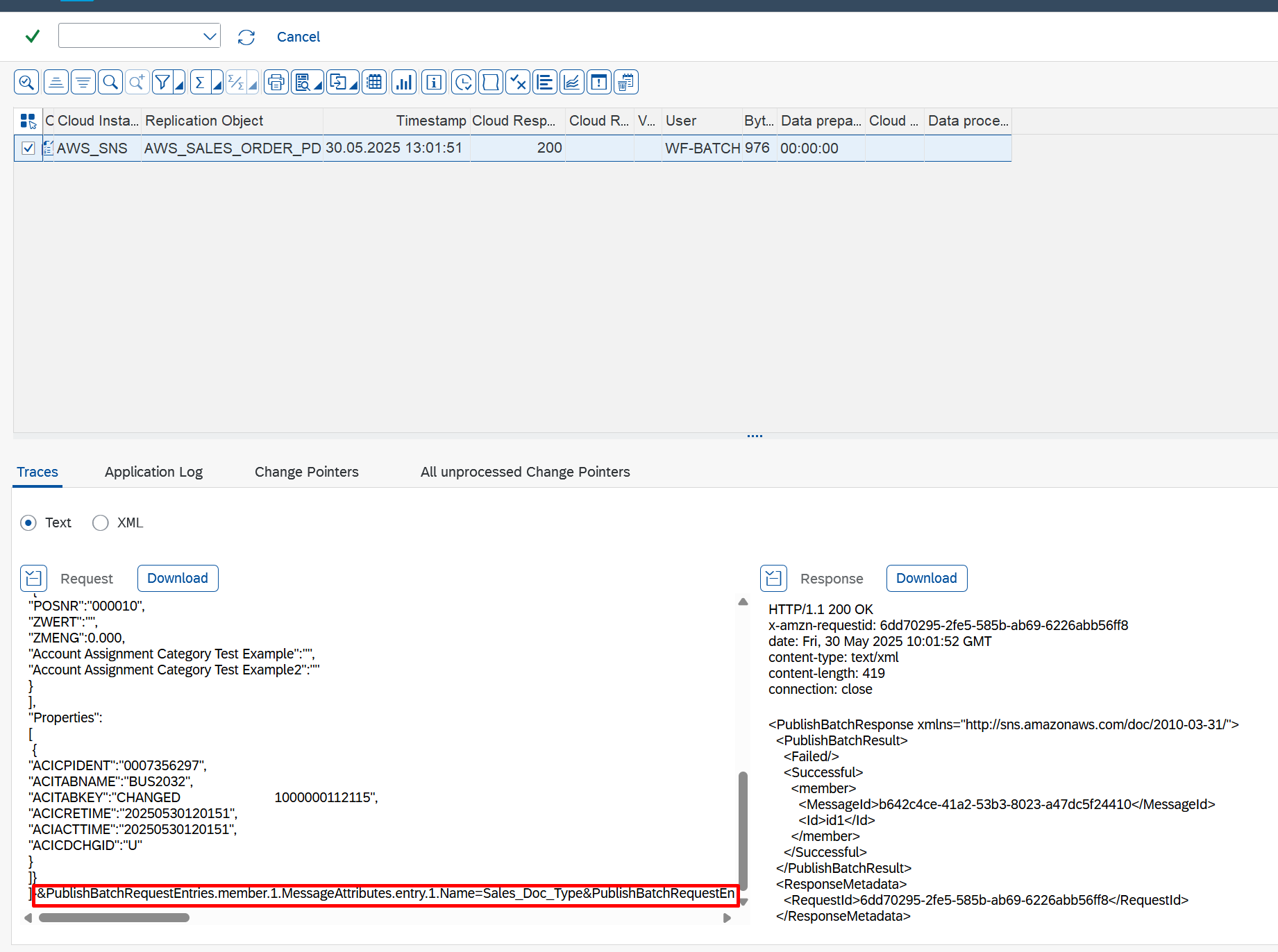

Monitor & Verification

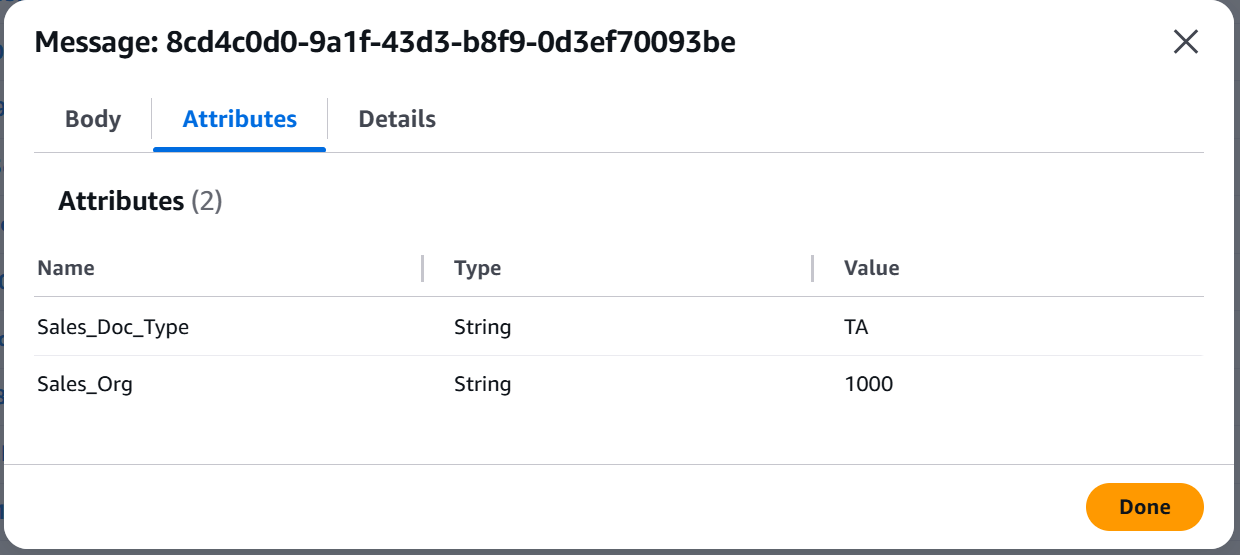

Message attributes are visible in the ASAPIO monitor when tracing is activated:
