Microsoft Azure Connector

The ASAPIO Integration Add-on connects SAP S/4HANA and SAP ECC directly to Microsoft Azure messaging and storage services — without middleware. Business events are published in real time to Azure Service Bus, Azure Event Hubs, Azure Event Grid, Azure Data Lake Storage Gen2 (ADLS), or Azure Blob Storage using REST. Unlike database-layer integrations, ASAPIO uses native SAP application-layer integration for full control over data and workload.

Overview

Component	Type
ASAPIO Integration Add-on – Framework	Base component (required)
ASAPIO Integration Add-on – Connector for Microsoft® Azure®	Additional package

Prerequisites

An active Microsoft Azure subscription and appropriate permissions to create App Registrations (for OAuth/MSI) or access policies (for SAS) are required. The SAP application server must have HTTPS connectivity to Azure endpoints.

Microsoft Authorization Setup

The Azure connector supports three authentication methods. Not every method is available for all Azure services:

Service	OAuth 2.0	Managed Identity (MSI)	SAS
Service Bus	✓	✓	✓
Event Hubs	✓	✓	✓
Event Grid	—	—	✓
Data Lake Storage	✓	—	✓

OAuth 2.0

OAuth 2.0 uses an Azure App Registration. A token is fetched from the Microsoft identity platform and cached until expiry. Configure an RFC destination pointing to login.microsoftonline.com with path prefix <tenantID>/oauth2/token.

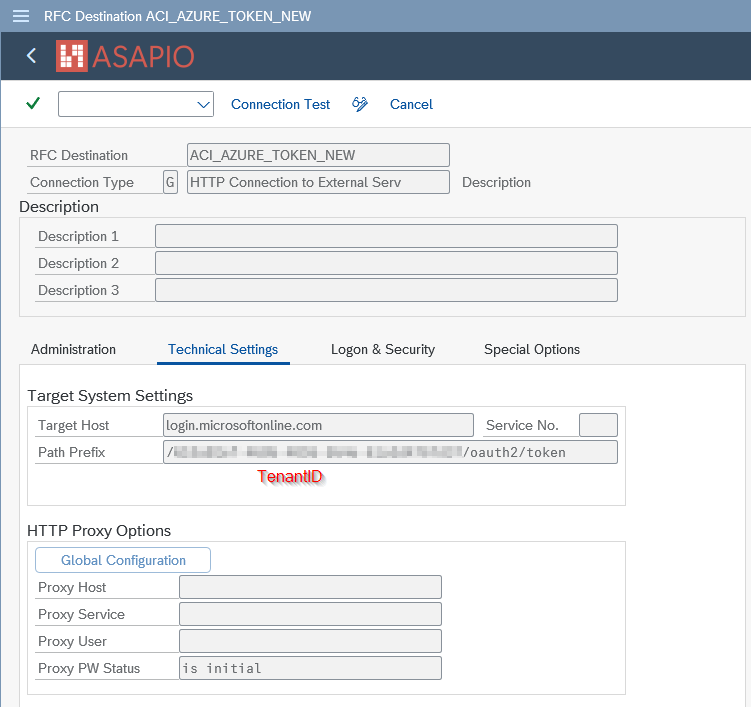

Azure tenant ID in OAuth RFC destination path

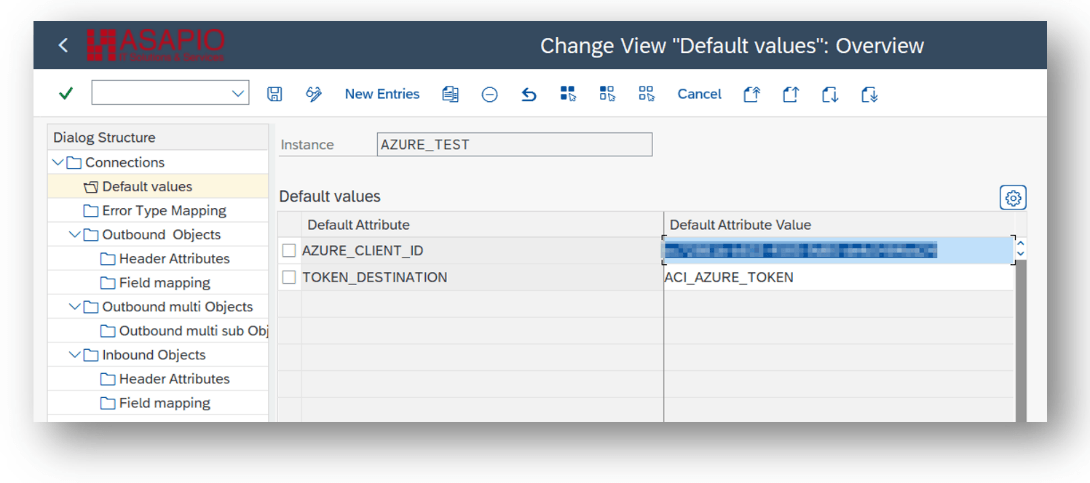

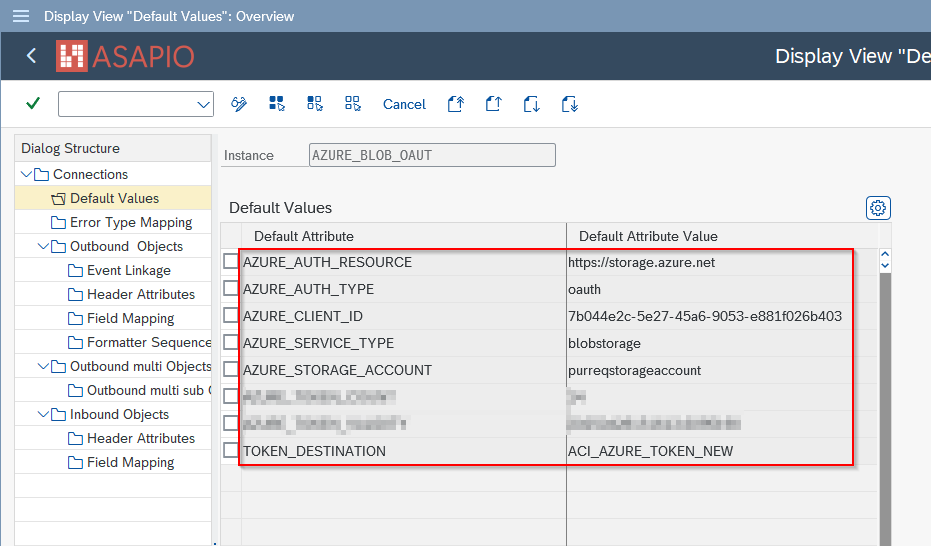

Required default attributes on the connection instance:

Default Attribute	Value / Description
`AZURE_CLIENT_ID`	Application (client) ID from the Azure App Registration
`TOKEN_DESTINATION`	RFC destination name for the OAuth token endpoint (`login.microsoftonline.com`)
`AZURE_AUTH_RESOURCE`	Optional — OAuth resource/audience override (e.g., `https://servicebus.azure.net/.default`)

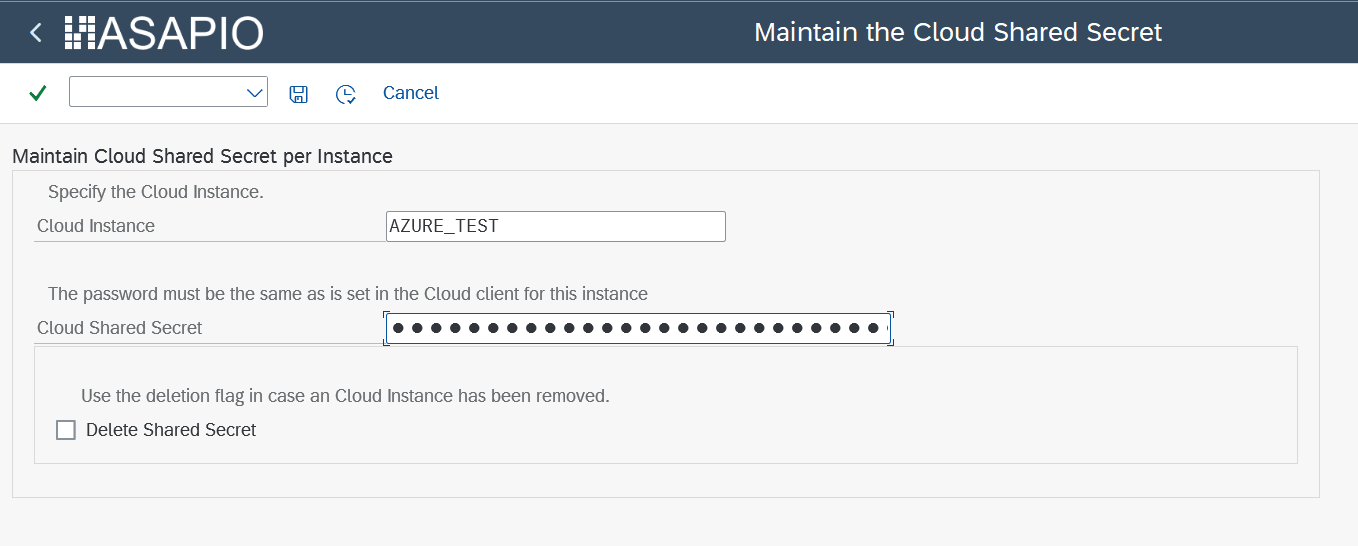

Store the client secret in the SAP Secure Store (transaction /ASADEV/SCI_TPW). The client secret is never stored in the connection defaults.

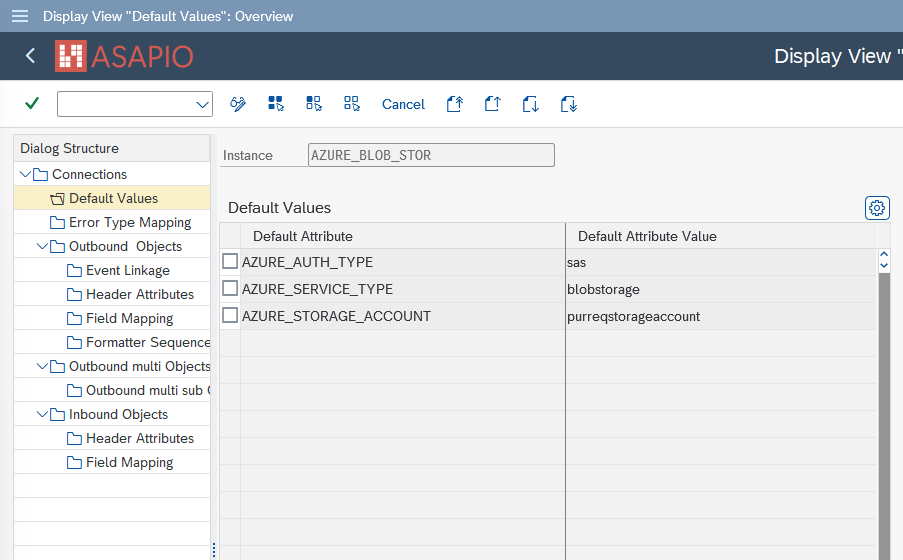

Shared Access Signature (SAS)

SAS authentication uses a namespace-level or entity-level SAS key.

Default Attribute	Value / Description
`AZURE_KEY_NAME`	SAS policy name (e.g., `RootManageSharedAccessKey`)
`AZURE_NAMESPACE`	Azure namespace hostname (e.g., `myns.servicebus.windows.net`)

Store the SAS key value in the SAP Secure Store (transaction /ASADEV/SCI_TPW).

Managed Identity (MSI)

Managed Identity is supported when SAP runs on an Azure virtual machine with a system-assigned or user-assigned managed identity. No client secret is required.

Default Attribute	Value
`AZURE_AUTH_TYPE`	`MANAGED_IDENTITY`
`AZURE_SERVICE_TYPE`	Target service (e.g., `servicebus`)
`TOKEN_DESTINATION`	RFC destination for the MSI token endpoint

SAP Connection Setup (in SAP Gui)

The connection setup in SAP GUI is a required first step for all configuration paths. This creates the RFC destination, imports the SSL certificate, activates the BC-Set, and registers the connection instance that both Event Studio and SAP GUI-based event configuration rely on.

Step 1 — Create RFC Destination (SM59)

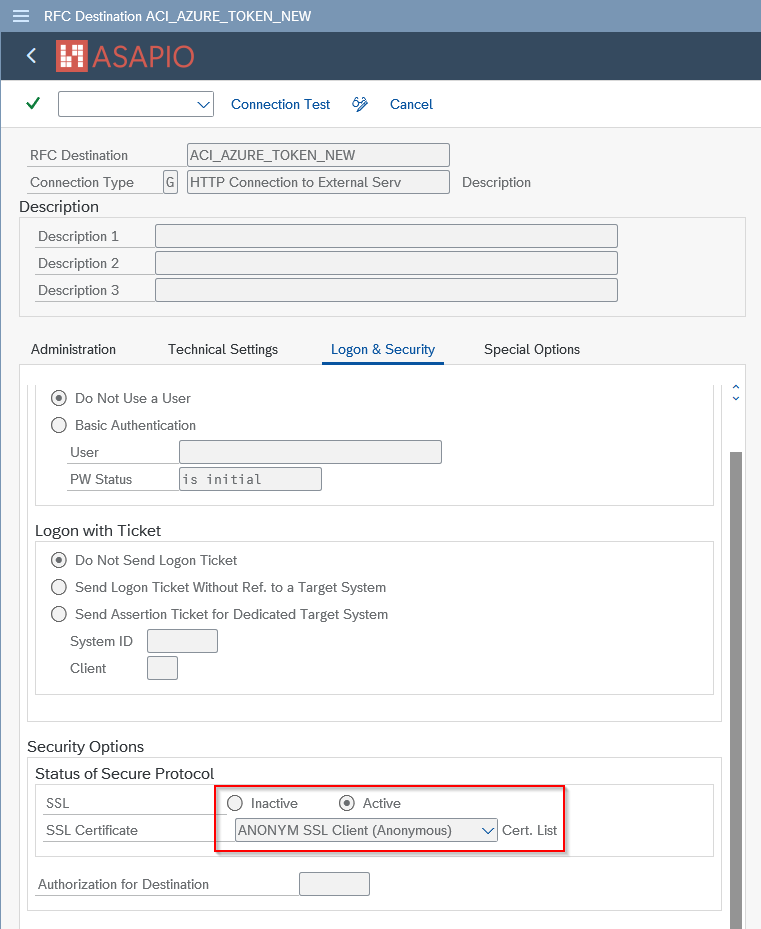

Create an HTTP connection of type G to the Azure service endpoint (e.g., myns.servicebus.windows.net). On the Logon & Security tab, enable SSL.

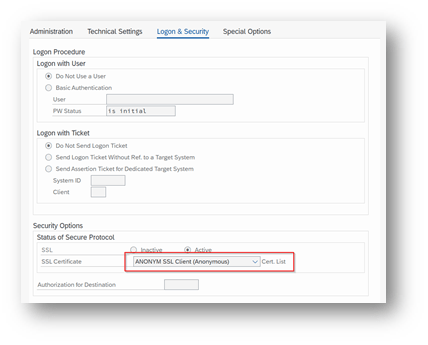

SM59 RFC destination for Azure Service Bus

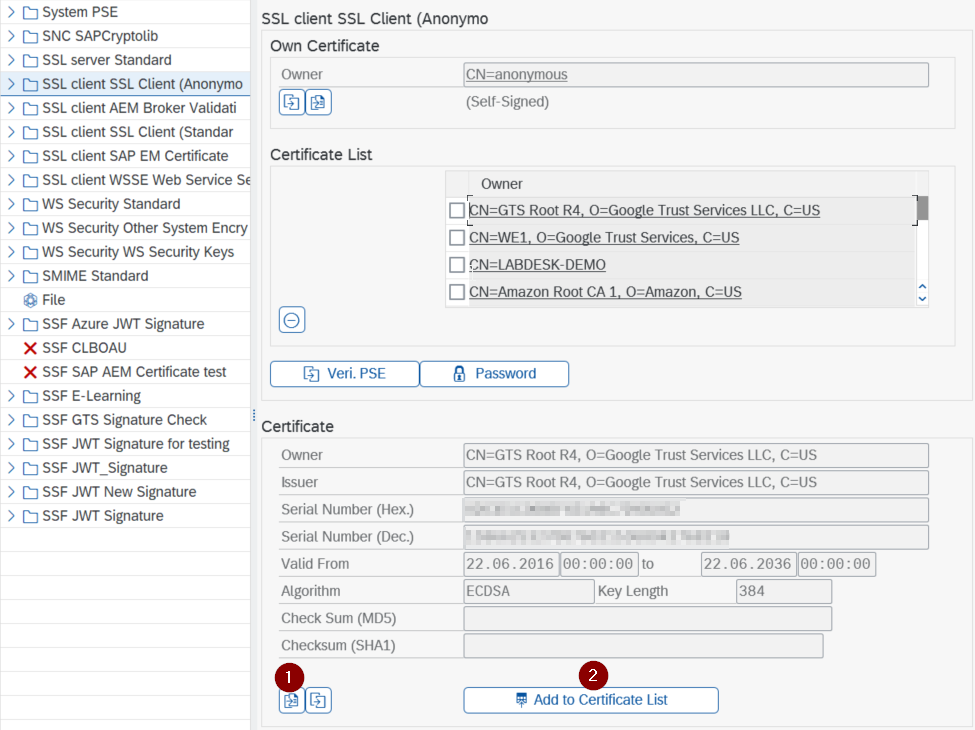

Step 2 — Import SSL Certificate (STRUST)

In transaction STRUST, import the Azure TLS certificate into the SSL Client Certificate list and add it to the Certificate List.

Step 3 — Import BC-Set (SCPR20)

Import the ASAPIO Azure framework BC-Set to activate the cloud adapter configuration and codepage definitions:

BC-Set: /ASADEV/ACI_BCSET_FRAMEWORK_AZ

SCPR20 BC-Set import for Azure connector

Step 4 — Configure Cloud Adapter

In SPRO → ASAPIO Cloud Integrator → Maintain Cloud Adapter, set:

Cloud Type: AZURE
ACI Handler Class: /ASADEV/CL_ACI_AZURE_REST
Error Mapping: HTTP 201 → Success, HTTP 202 → Success

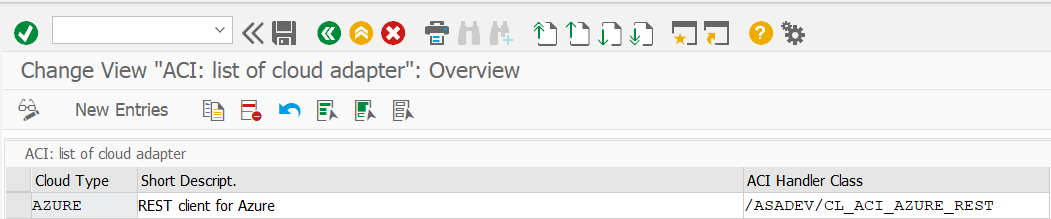

Azure cloud adapter configuration in SPRO

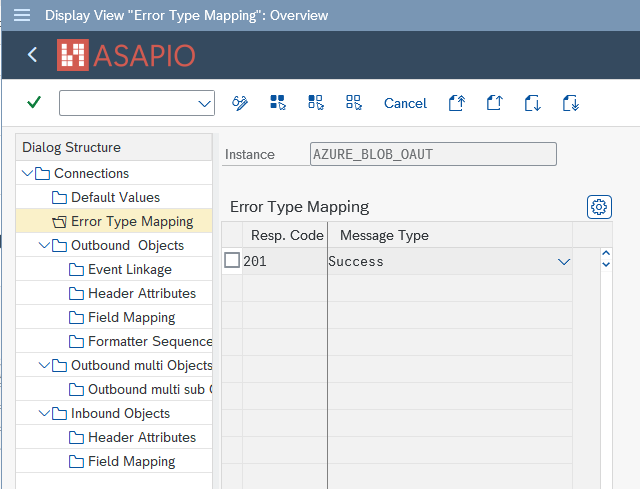

Azure error code mapping 201/202 to Success

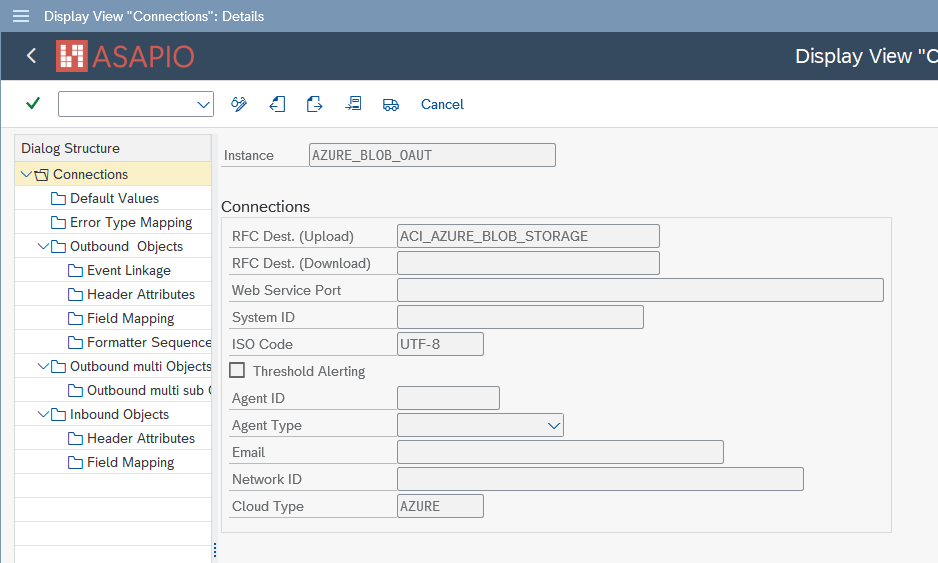

Step 5 — Create Connection Instance

In transaction /ASADEV/ACI_SETTINGS, create a connection instance and link it to the RFC destination. Set the authentication default values appropriate to your auth method (OAuth, SAS, or MSI — see the Authentication section above).

Create an outbound interface (Event Studio)

Prerequisite: The connection instance must already be set up in SAP GUI (see SAP Connection Setup (in SAP Gui) above) before Event Studio can be used to configure events.

Event Studio is the recommended web-based interface for creating and managing events. To configure an Azure event:

Open Event Studio and select the backend SAP system.
Go to the Data Catalog to find the data object to stream.
In the Available Standard Events table, click Deploy, or use Create to define a new event.
Select the Azure connection from the Connection dropdown — the Header Fields table auto-populates with the connection's default attributes.
Add the mandatory per-service header attributes for the target Azure service (see per-service sections below).
Save and activate the event.

For service-specific header attribute configuration, see: Azure Service Bus, Event Hubs, Event Grid, Data Lake Storage, or Blob Storage.

Create an outbound interface (SAP Gui)

All outbound methods are available for Azure targets:

Method	Extraction FM	Formatting FM
Simple Notify	`/ASADEV/ACI_SIMPLE_NOTIFY`	—
Message Builder	`/ASADEV/ACI_GEN_VIEW_EXTRACTOR`	`/ASADEV/ACI_GEN_VIEW_FORMATTER`
Packed Load	`/ASADEV/ACI_GEN_VIEW_EXT_PACK`	`/ASADEV/ACI_GEN_VIEW_FORMATTER`

Create Outbound Object

In transaction /ASADEV/68000202, select the connection instance, add an entry under Outbound Objects, and configure the method, message type, and response function. Then add the service-specific header attributes under the Header Attributes tab.

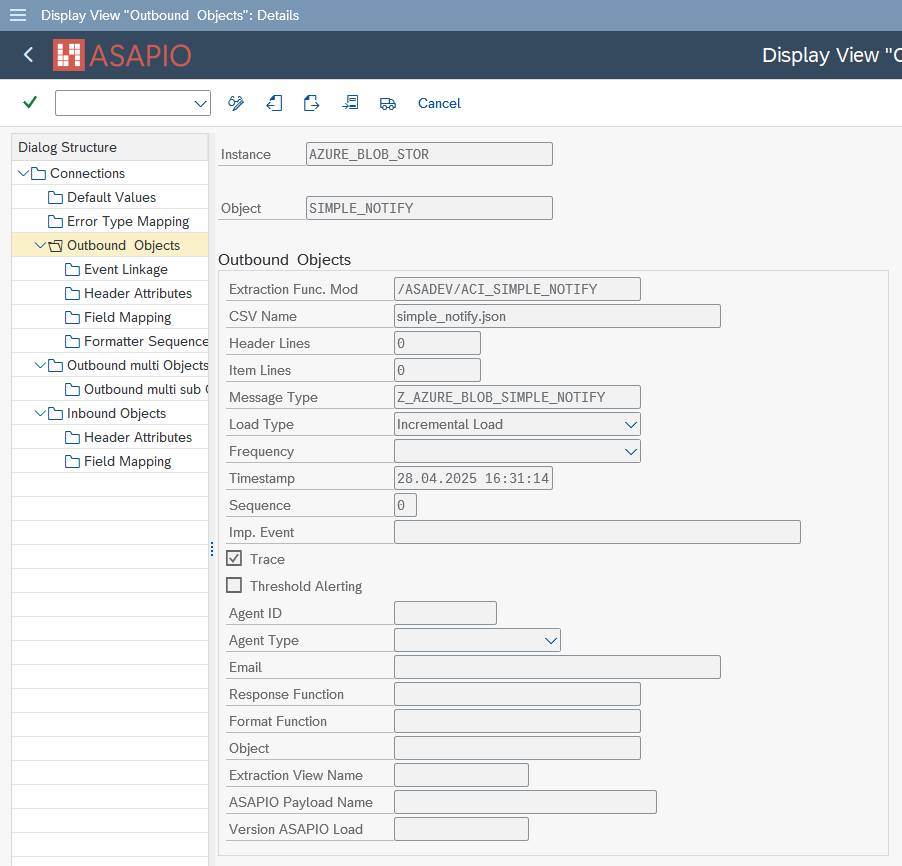

Azure outbound object detail with Message Builder FM

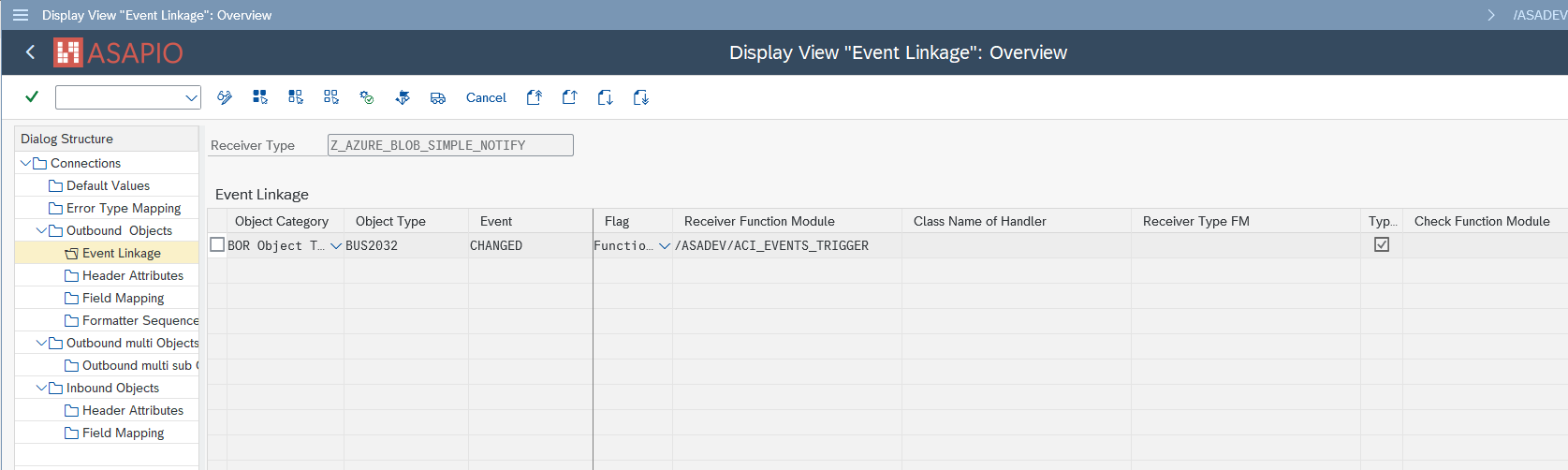

Event Linkage (SWE2)

Receiver Function Module: /ASADEV/ACI_EVENTS_TRIGGER
Tick Type linkage Activated

Packed Load — Header Attributes

For Packed Load, configure these additional header attributes:

Attribute	Description	Example
`ACI_PACK_TABLE`	Table for key fields (typically the header table)	`MARA`
`ACI_PACK_SIZE`	Records per delivery package	`500`
`ACI_PACK_KEY_LENGTH`	Total length of key fields	`13`
`ACI_PACK_WHERE_COND`	Optional WHERE condition on `ACI_PACK_TABLE`	—
`ACI_PACK_RETRY_TIME`	Seconds before retrying server group resource acquisition	`300`
`ACI_PACK_BDCP_COMMIT`	Generate change pointers per entry (~50% performance impact)	`X`

For service-specific header attribute configuration, see: Azure Service Bus, Event Hubs, Event Grid, Data Lake Storage, or Blob Storage.

Azure Service Bus

Supported auth methods: OAuth 2.0, Managed Identity, SAS. Configure the following header attributes on the outbound object:

Header Attribute	Value / Description	Required
`AZURE_SERVICE_TYPE`	`servicebus`	Yes
`AZURE_AUTH_TYPE`	Authentication method: `oauth`, `MANAGED_IDENTITY`, or `sas`	Yes
`AZURE_TOPIC`	Queue or topic name in the Service Bus namespace	Yes

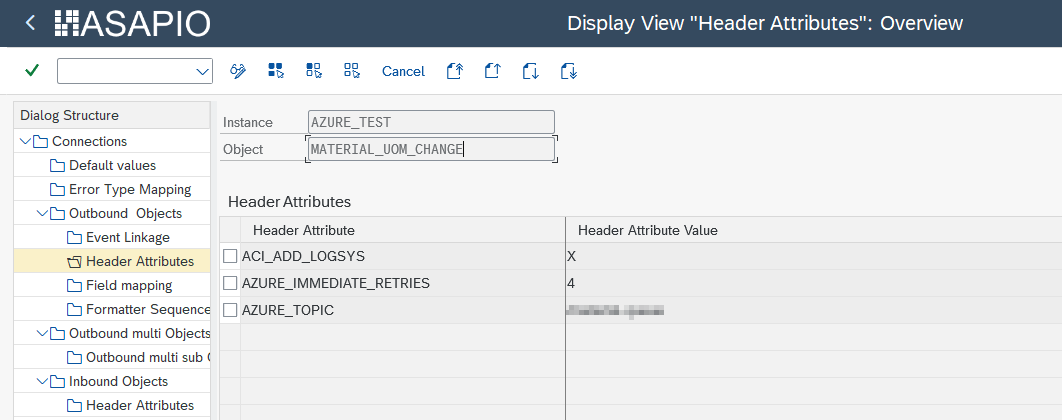

`AZURE_IMMEDIATE_RETRY`	Number of immediate retries on failure (default: `2`)	Optional

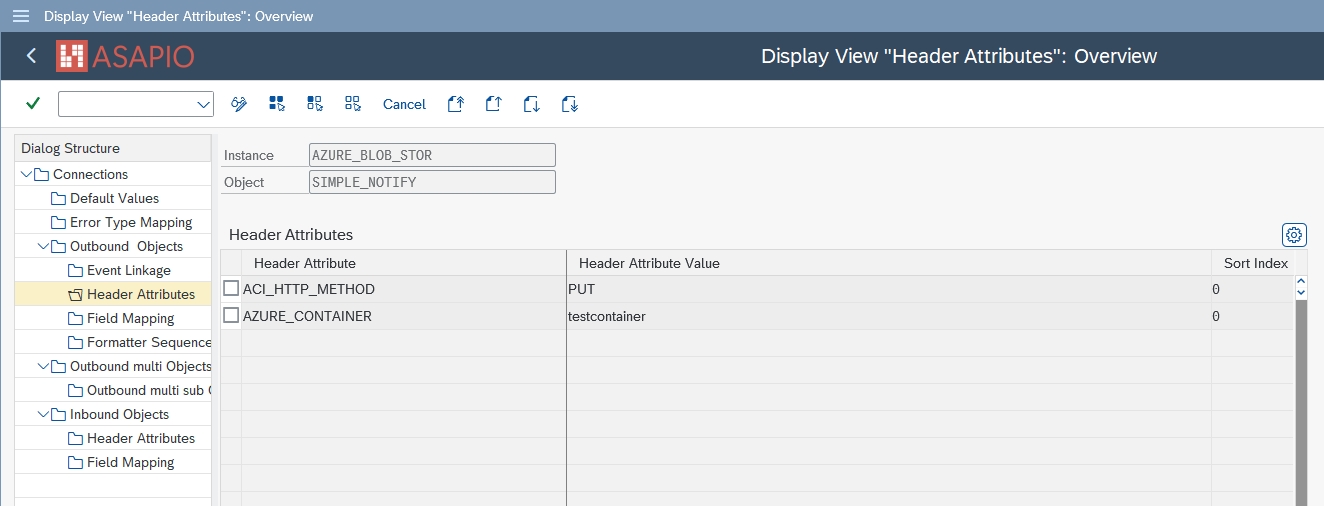

Service Bus header attributes on outbound object

Azure Event Hubs

Supported auth methods: OAuth 2.0, Managed Identity, SAS. Configure the following header attributes:

Header Attribute	Value / Description	Required
`AZURE_SERVICE_TYPE`	`eventhub`	Yes
`AZURE_AUTH_TYPE`	Authentication method: `oauth`, `MANAGED_IDENTITY`, or `sas`	Yes
`AZURE_TOPIC`	Event Hub name	Yes
`AZURE_IMMEDIATE_RETRY`	Number of immediate retries on failure (default: `2`)	Optional

Azure Event Grid

Supported auth methods: SAS only. Configure the following header attributes:

Header Attribute	Value / Description	Required
`AZURE_SERVICE_TYPE`	`eventgrid`	Yes
`AZURE_AUTH_TYPE`	`sas`	Yes
`AZURE_GRID_REGION`	Azure region of the Event Grid topic (e.g., `germanywestcentral`)	Yes
`AZURE_GRID_TOPIC`	Event Grid custom topic name	Yes

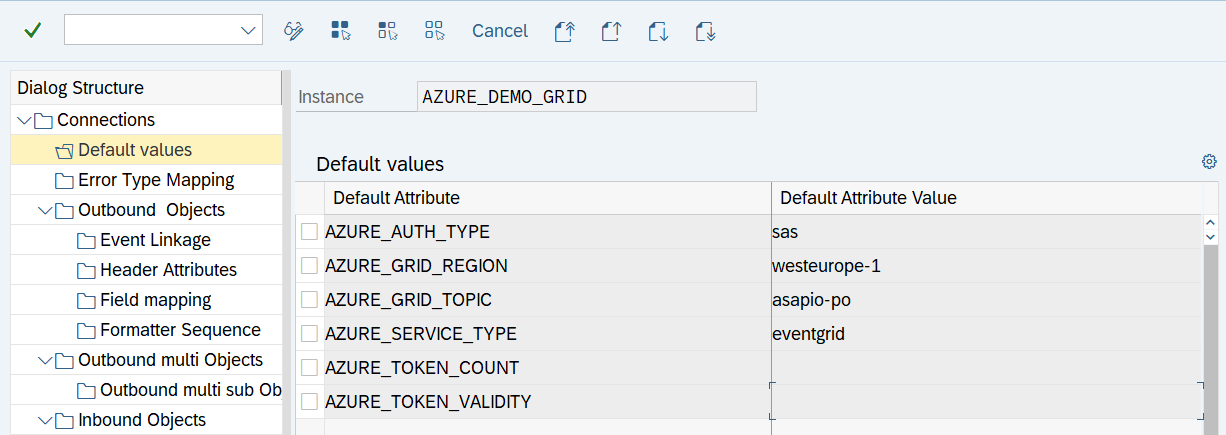

Event Grid AZURE_GRID_REGION header attribute

Azure Data Lake Storage Gen2 (ADLS)

Supported auth methods: OAuth 2.0, SAS. Configure the following header attributes:

Header Attribute	Value / Description	Required
`AZURE_SERVICE_TYPE`	`datalake`	Yes
`AZURE_AUTH_TYPE`	`oauth` or `sas`	Yes
`AZURE_STORAGE_ACCOUNT`	ADLS storage account name	Yes
`AZURE_CONTAINER`	Container (filesystem) name in the storage account	Yes

Azure Blob Storage

Configure the following header attributes for Blob Storage targets:

Header Attribute	Value / Description	Required
`AZURE_SERVICE_TYPE`	`blobstorage`	Yes
`AZURE_STORAGE_ACCOUNT`	Blob storage account name	Yes
`CSV_NAME`	Optional file name prefix for files written to Azure Blob Storage. The final file name is composed of the configured CSV Name, a timestamp, and a unique identifier, e.g.: `Sales_Order_20260624_111339_c30d9b`. If left empty, a default name is generated automatically.	No

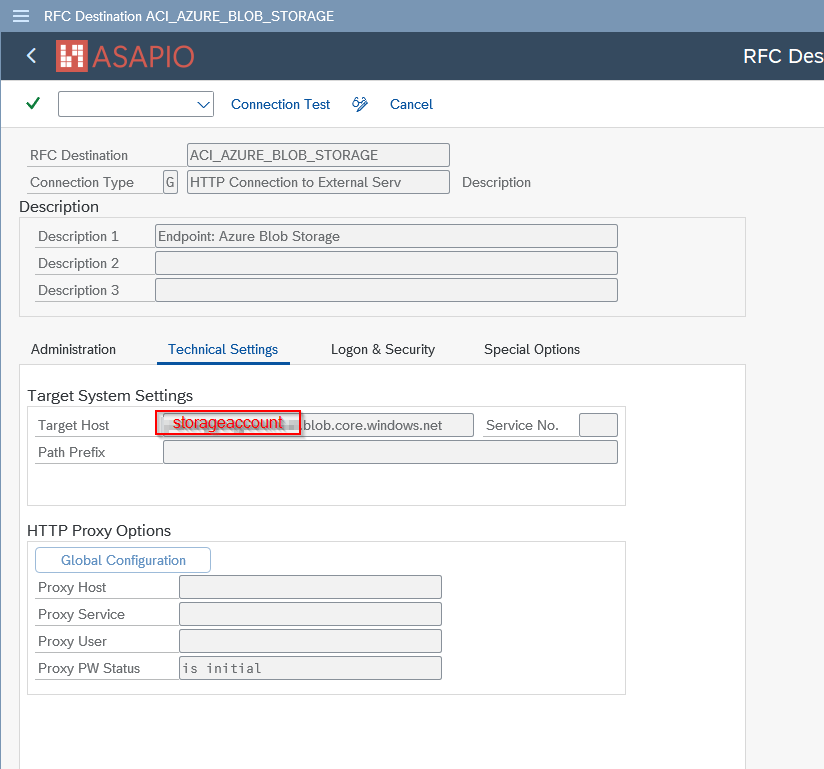

Azure Blob Storage RFC destination configuration

Azure Payload Offloading

Available from release 9.32504. Azure Service Bus and Event Hubs have message size limits. Payload offloading transparently stores large payloads in Azure Blob Storage or ADLS, publishing only a reference URL to the original target. The consuming side retrieves the full payload from storage.

Configure these header attributes to enable offloading:

Header Attribute	Value / Description
`AZURE_PAYLOAD_OFFLOADING`	`X` — enables payload offloading
`AZURE_PAYLOAD_OFFLOADING_SIZE`	Threshold in bytes above which offloading triggers
`AZURE_CONTAINER`	Storage container name for offloaded payloads
`AZURE_STORAGE_ACCOUNT`	Storage account name
`AZURE_STORAGE_DESTINATION`	RFC destination name for the storage endpoint
`AUTH_INSTANCE`	Connection instance to use for storage auth (if different from primary)
`AZURE_TOPIC`	Queue/topic/hub name for the reference notification

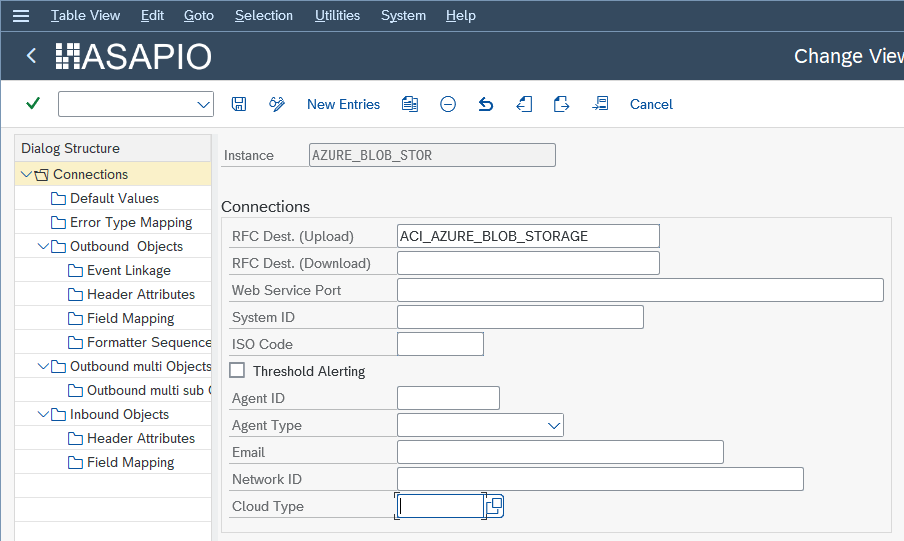

Azure payload offloading connection instance

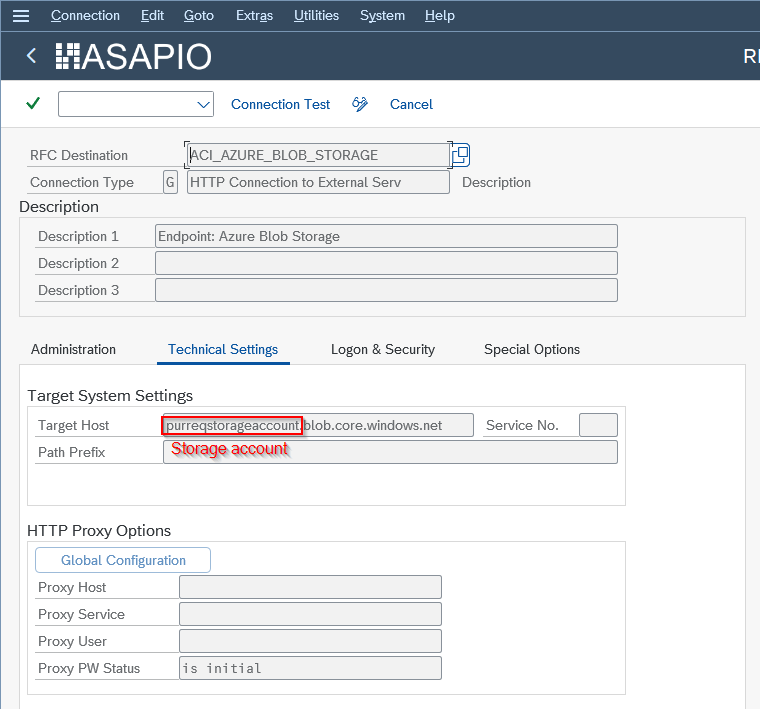

Azure payload offloading storage RFC destination

Inbound Pull (Service Bus)

The Azure connector supports pulling messages from Azure Service Bus queues and delivering them to SAP via IDoc. Configure the following attributes on the inbound object:

Attribute	Value / Description
`AZURE_QUEUE_NAME`	Service Bus queue name to pull from
`AZURE_PULL_DURATION`	Total polling duration in seconds per call (default: `60`)
`AZURE_PULL_WAIT`	Long-poll wait time per request in seconds (default: `3`)

The inbound sample IDoc function module is /ASADEV/ACI_SAMPLE_IDOC_JSON.

Azure Databricks

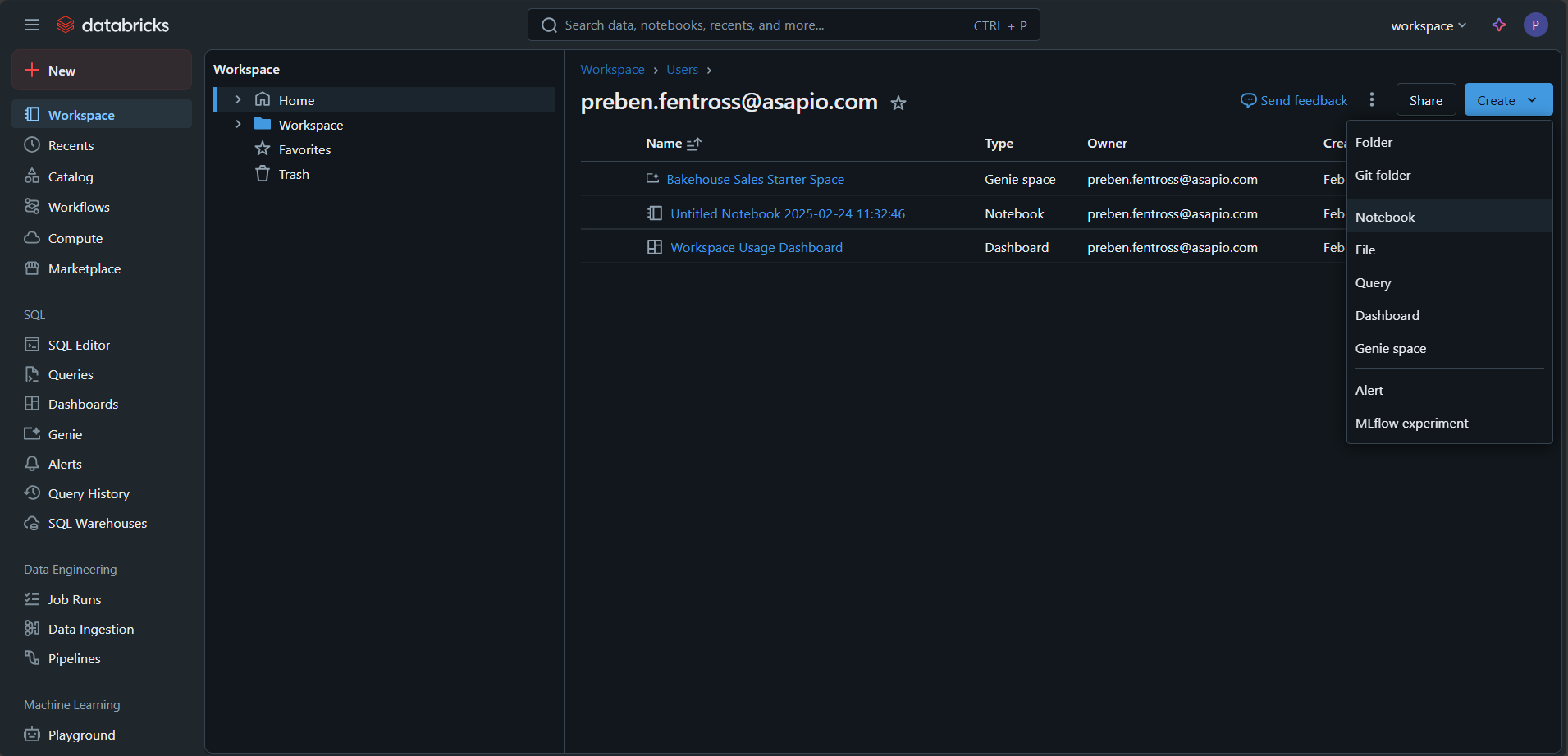

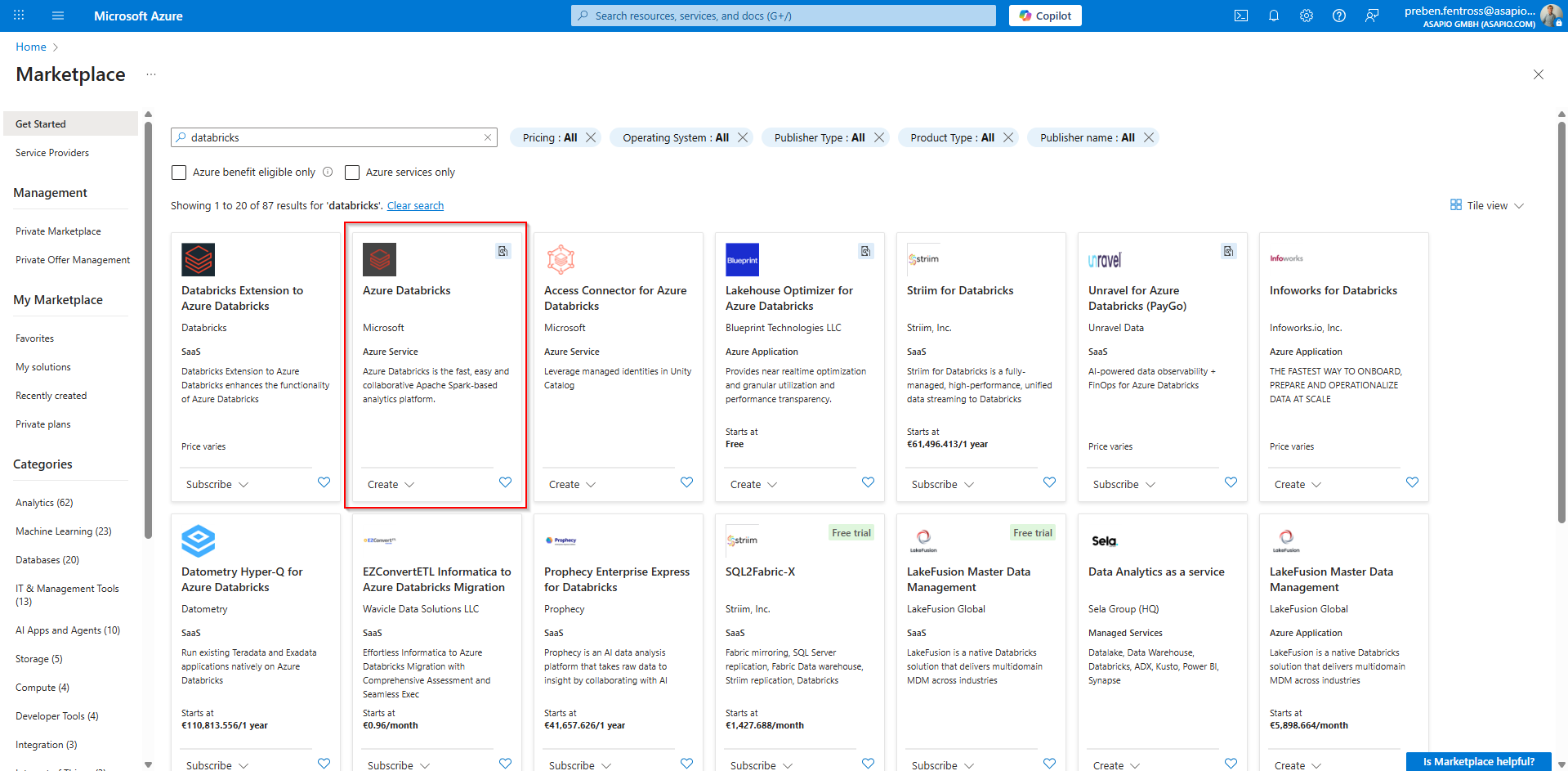

ASAPIO data published to ADLS or Blob Storage can be consumed directly in Azure Databricks notebooks. The connector is available via Azure Marketplace — install the ASAPIO add-on from the Marketplace into your Databricks workspace.

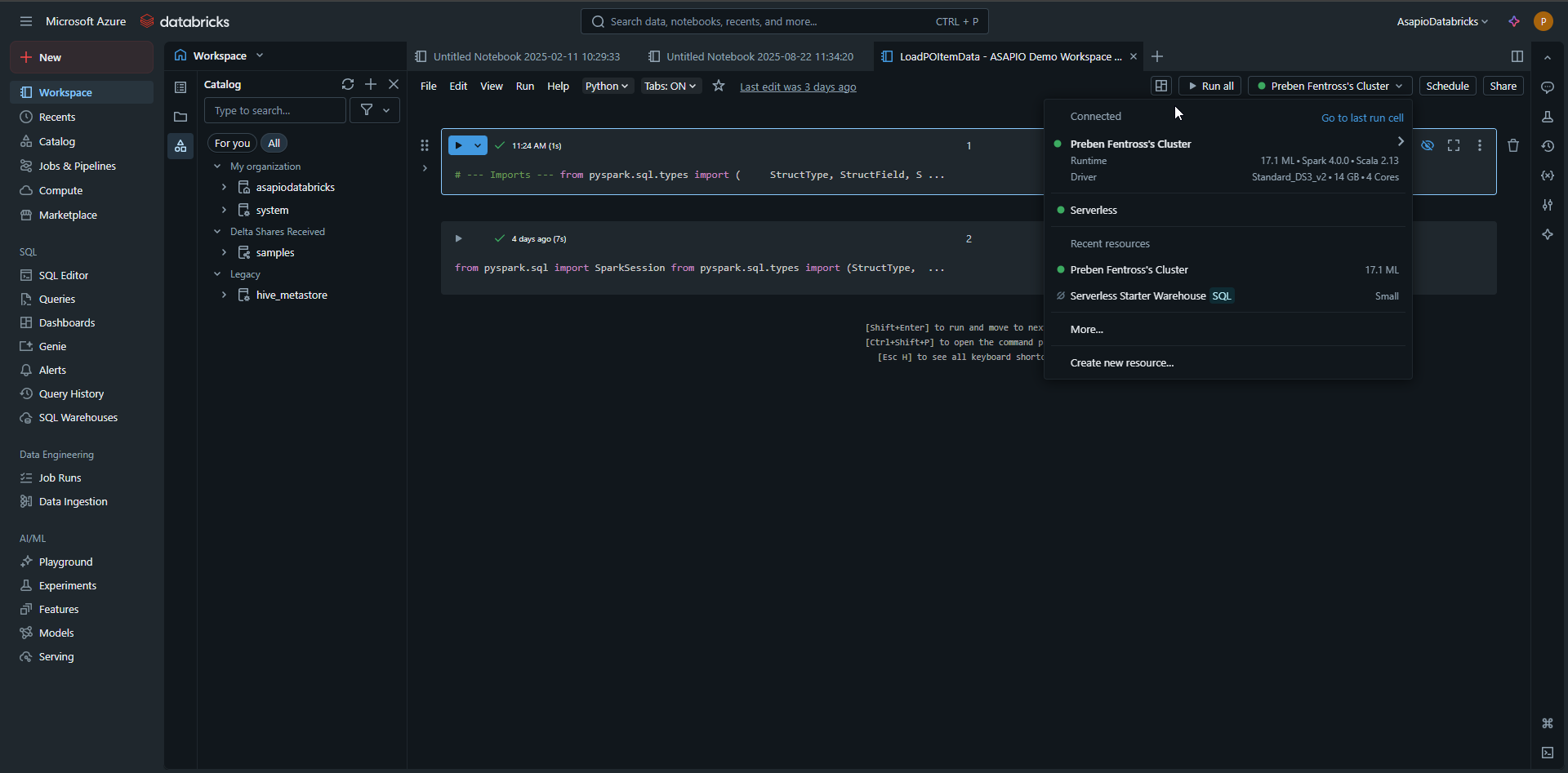

In the Databricks notebook, configure the storage mount using the wasbs:// scheme with your storage account credentials, then access the SAP data files using standard PySpark or Spark SQL.
