RAP Events

With release 2504 (9.32504) the ASAPIO Integration Addon supports RAP events as triggers for outbound interfaces. SAP offers local consumption of RAP Business Object events since S/4HANA 2023, opening up integration possibilities for all new events added to new RAP Business Objects.

Overview

RAP (ABAP RESTful Application Programming Model) Business Events are the modern replacement for classical ABAP change pointers and BAdI-based event triggers. They are natively supported by the S/4HANA core and offer a clean-core compliant way to react to business object lifecycle events and push them to any external messaging platform via ASAPIO.

Prerequisites

SAP S/4HANA 2023 or later
ASAPIO Integration Add-on release 9.32504 or later
ASAPIO Event Studio

Baseline Configuration

Create default bgRFC destination BGPF

First check if this default destination is already present in your system — most systems will already have it. If not, follow the SAP Help documentation or execute the following steps:

Go to transaction SBGRFCCONF.
Click the tab Define Inbound Dest. and press Create.
Enter Inb. Dest. Name BGPF.
Restriction: Do not enter information for Logon/Server Group or Add Queue Prefix.
Choose Save.

Create application-specific bgRFC destination

ASAPIO's RAP event processing uses bgRFC calls. Create a dedicated destination:

Go to transaction SBGRFCCONF.
Click the tab Define Inbound Dest. and press Create.
Enter an Inb. Dest. Name of your choice (e.g. ASAPIO).
Choose Save.

Setup connector instance

Set up the connector instance following the Connectors guide for your specific connector type. Then add the application-specific bgRFC destination in the connection instance's default values:

Add attribute ACI_BGRFC_DESTINATION and set its value to the bgRFC destination name created above.

Connection instance default values showing ACI_BGRFC_DESTINATION attribute — Connection instance — set `ACI_BGRFC_DESTINATION` in the default values tab

Activating RAP Events

Via SAP GUI

Since release January 2026, it is possible to activate RAP event linkages in the classic SAP GUI configuration. Download one of the Event Handler classes from the Content Catalog — the class source code contains the exact values to enter. For example, for Products, open class /ASARAP/CL_PRODUCT_HANDLER to find the constants:

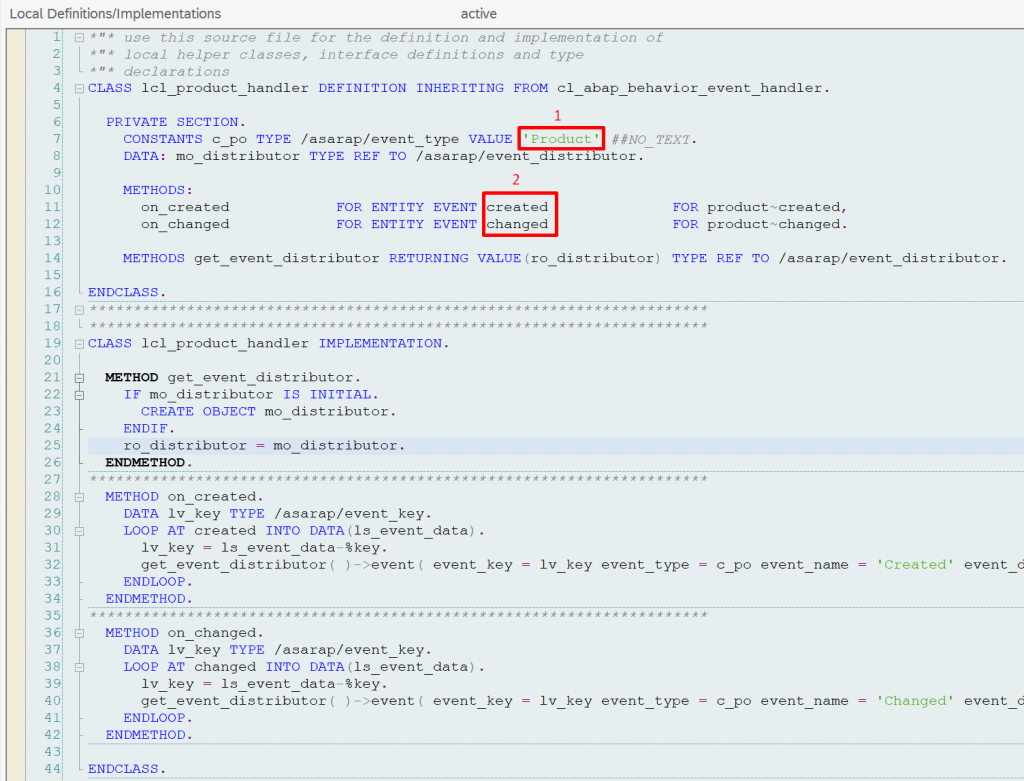

RAP event handler class showing object name and event name constants — Event handler class — copy the RAP Business Object Alias (1) and RAP Event name (2) into the configuration

To configure the event linkage:

Transaction: /ASADEV/ACI_SETTINGS
Select the Outbound Object for which to activate the linkage
Go to section RAP Event Linkage
Add a new entry and specify:
- Event Type: RA
- Object Name: RAP Business Object Alias (1 in screenshot above)
- Event Name: RAP Event (2 in screenshot above)
- Active: check to activate

RAP event linkage configuration screen in /ASADEV/ACI_SETTINGS — RAP Event Linkage — configuration in `/ASADEV/ACI_SETTINGS`

Via Event Studio

Follow the Event Studio guide to deploy interfaces. The Event Studio includes predefined events for all supported RAP Business Objects:

Business Object	Supported Events
Equipment	Created, Changed
BusinessPartner	Created, Changed
BillingDocument	Created, Changed, Canceled
CreditMemoRequest	Created, Changed, Deleted, Order-related billing status changed, Total block status changed, Overall rejection status changed, Overall processing status changed, Item created, Item changed, Item deleted, Item overall processing status changed, Item order-related billing status changed
CustomerReturn	Created, Changed, Deleted, Item created, Item changed, Item deleted
DebitMemoRequest	Created, Changed, Deleted, Order-related billing status changed, Total block status changed, Overall rejection status changed, Overall processing status changed, Overall credit check status changed, Item created, Item changed, Item deleted, Item overall processing status changed, Item order-related billing status changed
FunctionalLocation	Created, Changed
InboundDelivery	Created, Changed, Deleted
InspectionLot	Created, Changed, Canceled, Operation created
JournalEntry	Created
MaintenanceNotification	Created, Completed, Set to in process
MaintenanceOrder	Approved, Closed, Rejected, Set to ready to schedule, Set to Work done, Set to Work started, Set to Work not performed, Set to Ready for execution, Set to deletion flagged, Set to in planning, Set to in preparation, Set to Maintenance work completed, Set to technical completed, Submitted for approval, Order Phase control activated/deactivated, Operation phase control activated/deactivated
MaterialDocument	Created, Canceled
OutboundDelivery	Created, Changed, Deleted, Delivery block changed, GI status changed, Packing status changed, Picking status changed, Item created, Item changed, Item deleted
Product	Created, Changed
PurchaseContract	Created, Changed, Target value changed, Validity changed, Item created, Item deleted, Item restored, Item blocked, Item unblocked, Item target quantity changed, Item net price amount changed
PurchaseOrder	Created, Changed, Approved, Approval rejected, Item created, Item changed, Item deleted, Item blocked, Item unblocked
PurchaseRequisition	Created, Changed, Approved, Rejected, Item approved, Item rejected, Item created, Item changed
PurchaseSchedulingAgreement	Created, Changed, Released
PurchasingInfoRecord	Created, Changed
QualityNotification	Created, Activated, In process, Changed, Not approved, For approval, Deletion flag set, Completed, Processor assigned, All tasks completed, Defect created, In process again, Approved
QualityTask	Created, Changed, Completed, Set to in process, Processor assigned
RequestForQuotation	Published, Follow-on document created
SalesContract	Created, Changed, Deleted, Item created, Item changed, Item deleted
SalesInquiry	Created, Changed, Deleted
SalesOrder	Created, Changed, Deleted, Approval status changed, Billing block status changed, Delivery confirmation status changed, Delivery status changed, Overall delivery block status changed, Rejection status changed, Overall processing status changed, Overall credit check status changed, Item created, Item changed, Item deleted, Item billing block status changed, Item delivery block status changed, Item delivery confirmation status changed, Item delivery status changed, Item general incompletion status changed, Item profit center changed, Item rejection status changed, Item overall processing status changed, Item WBS element changed
SalesOrderWithoutCharge	Created, Changed, Deleted
SalesPricingConditionRecord	Created, Changed, Deleted, Amount changed, Condition ratio changed, Validity period changed
SalesQuotation	Created, Changed, Deleted, Overall rejection status changed, Overall processing status changed, Approval status changed, Item created, Item changed, Item deleted, Item rejection status changed, Item general incompletion status changed, Item overall processing status changed
SalesSchedulingAgreement	Created, Changed, Deleted, Item created, Item changed, Item deleted
ServiceEntrySheet	Created, Changed
ServiceOrder	Created, Changed, Deleted, Completed, Released, Release revoked, Change when released
SupplierInvoice	Created, Canceled
SupplierQuotation	Submitted, Awarded, Follow-on document created
WorkCenter	Created, Changed, Deleted

Custom Payloads

To attach a custom payload design to a RAP event:

Create your Payload Design.
In Event Studio, Add event definition:
- Specify your Payload Design in Catalog Object Id / Version.
- Enter the event information in Event Type, Object ID, and Event Name.

Your Payload Design will then appear in the Data Catalog with the RAP event listed as a deployment trigger.
